Mechanical

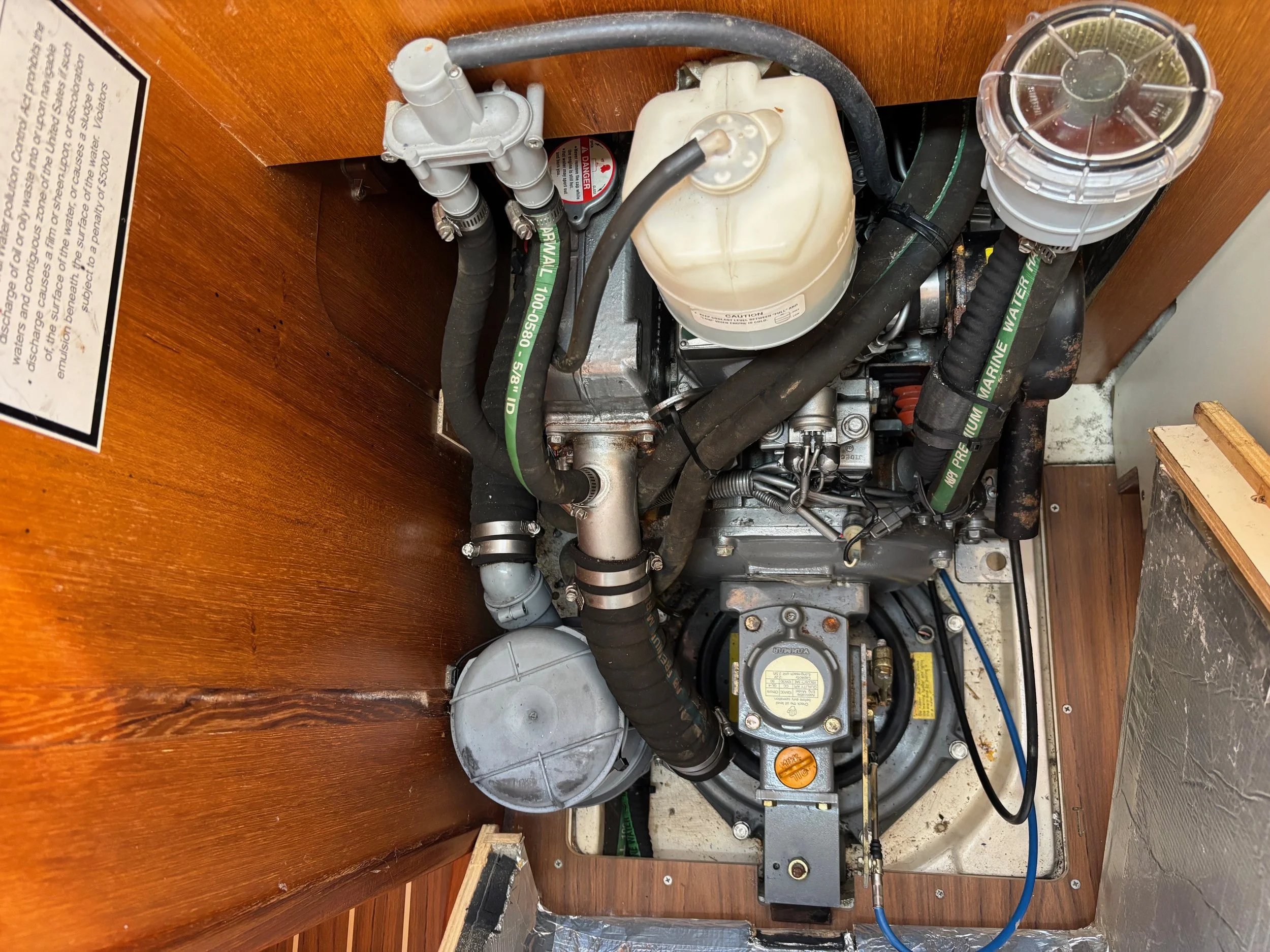

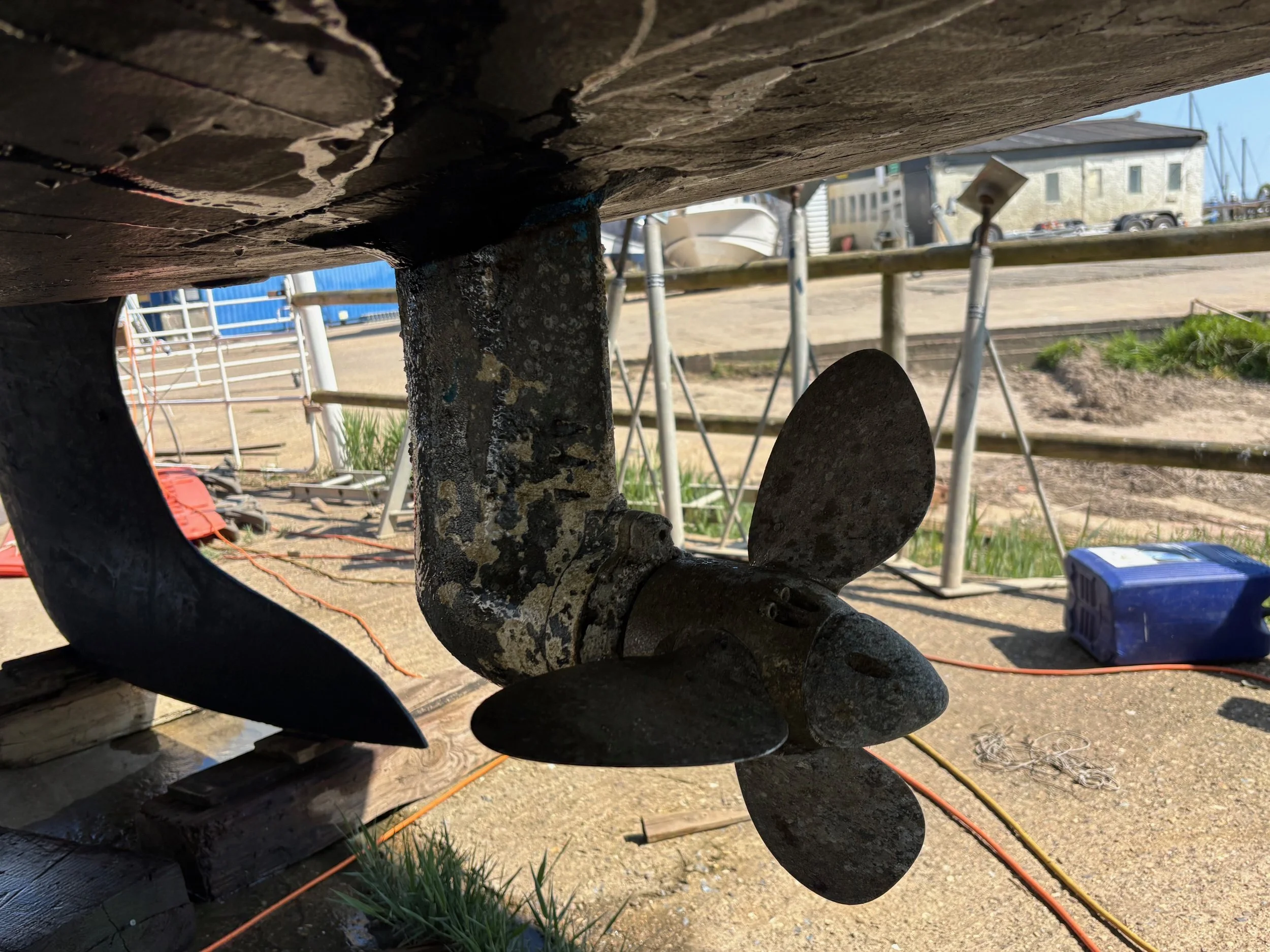

Yanmar 3YM20 3 cylinder 21hp inboard diesel. Electric start. Freshwater cooled via heat exchanger. Saildrive to Darglow Featherstream three bladed feathering propeller (propeller new 2017, saildrive seal 2018). Single lever control. 95 litre fuel capacity in plastic tank giving approximately 240 mile range at 6 knots. Maximum speed under power 7 knots.
Electrical

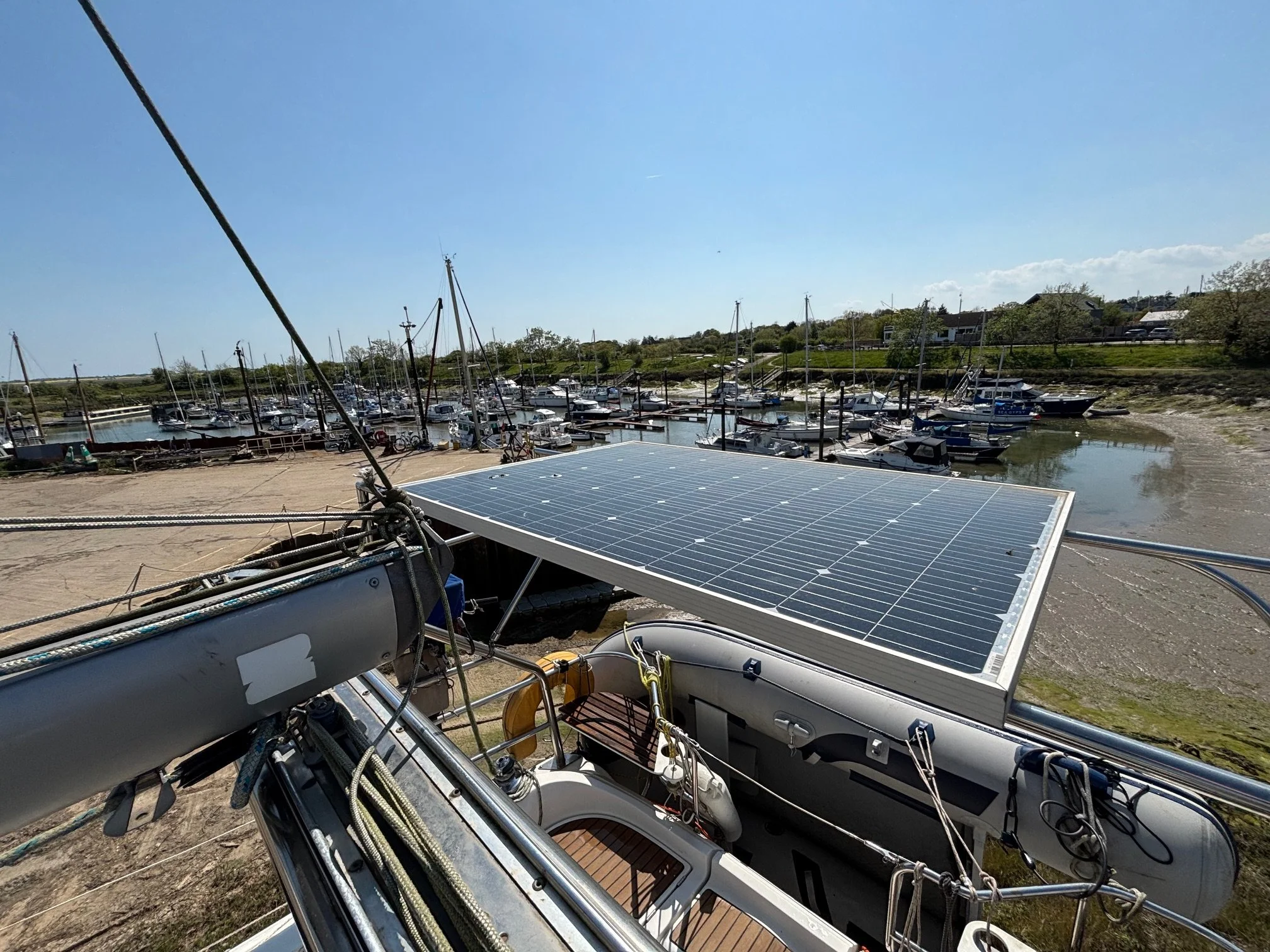

Alternator charging to 2 x 12v batteries. 240v shore power with battery charger. 3 pin sockets throughout boat. Inverter. Solar panel (2024) on stainless steel gantry above cockpit with Victon charge controller (2024).
Navigation

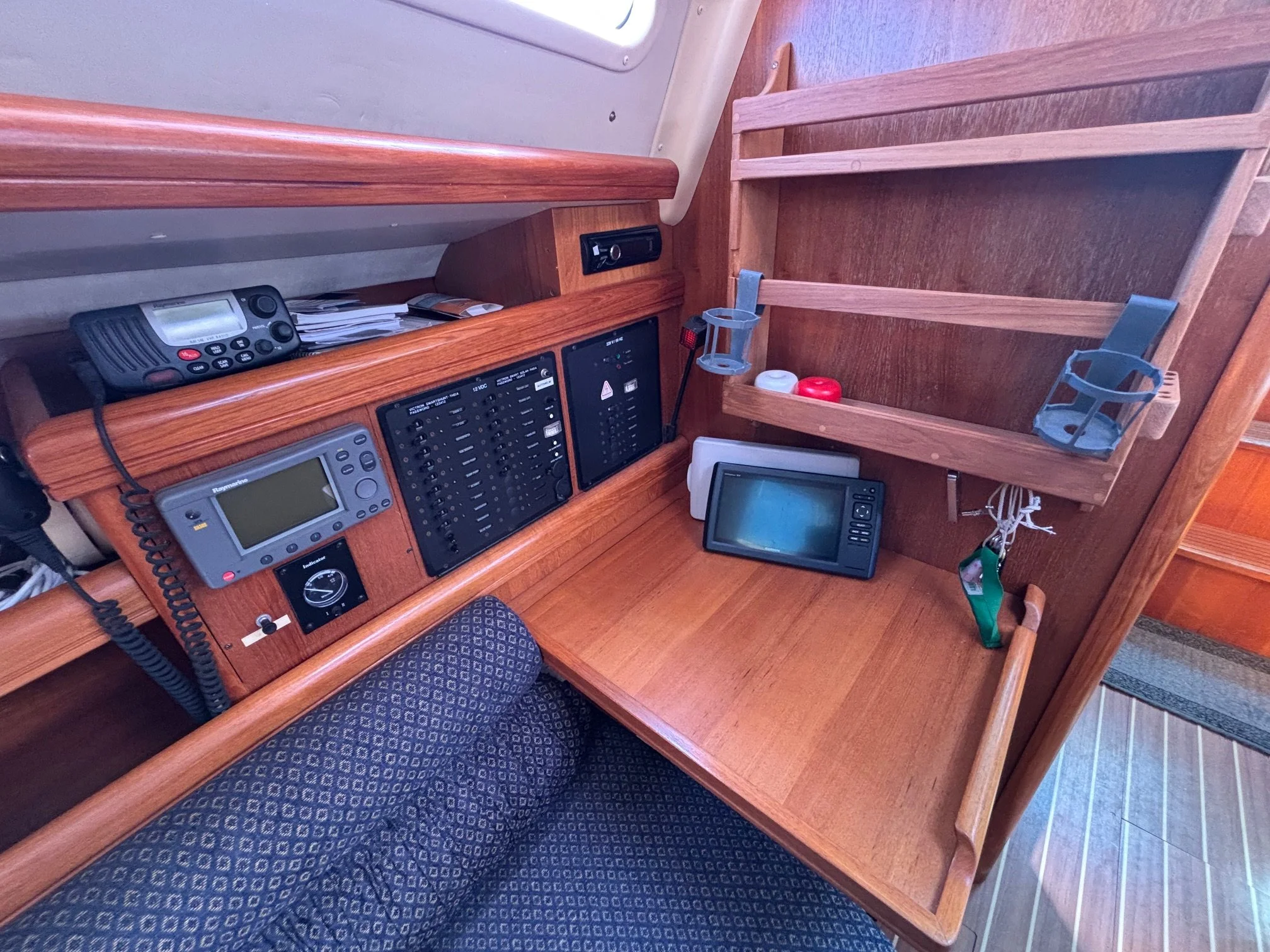

Danforth compass, Raymarine BiData depth and log, Raymarine Ray 54E DSC VHF radio, Raymarine ST4000+ autopilot, Garmin EchoMay SV chart plotter, Raymarine GPS, clock and barometer, navigation lights.
Safety

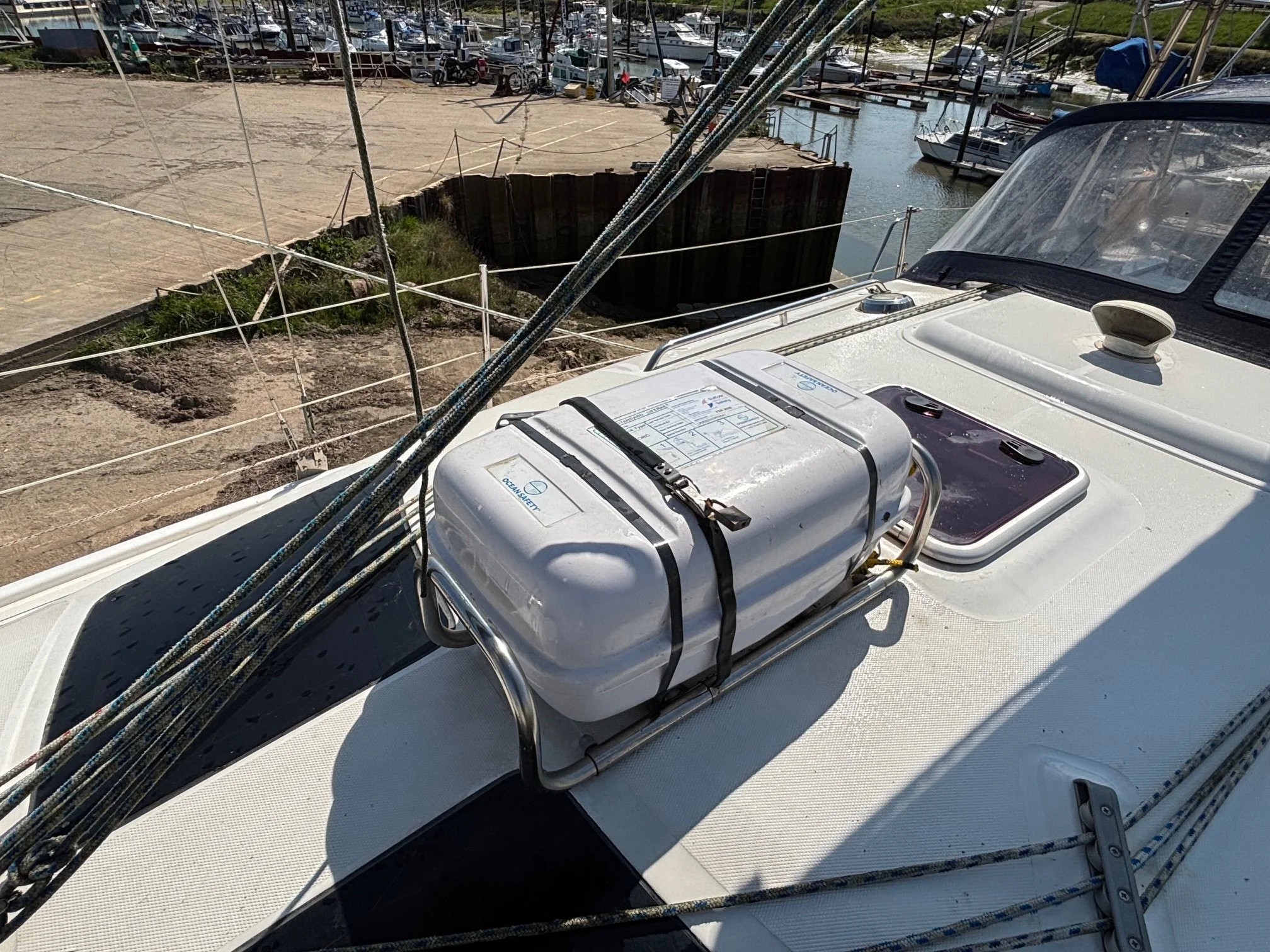

Ocean Safety ORC liferaft (quite new - service date Feb 28), danbuoy, horseshoe lifebuoy, rescue sling, emergency tiller, fire extinguishers, electric and manual bilge pumps.
Deck Gear

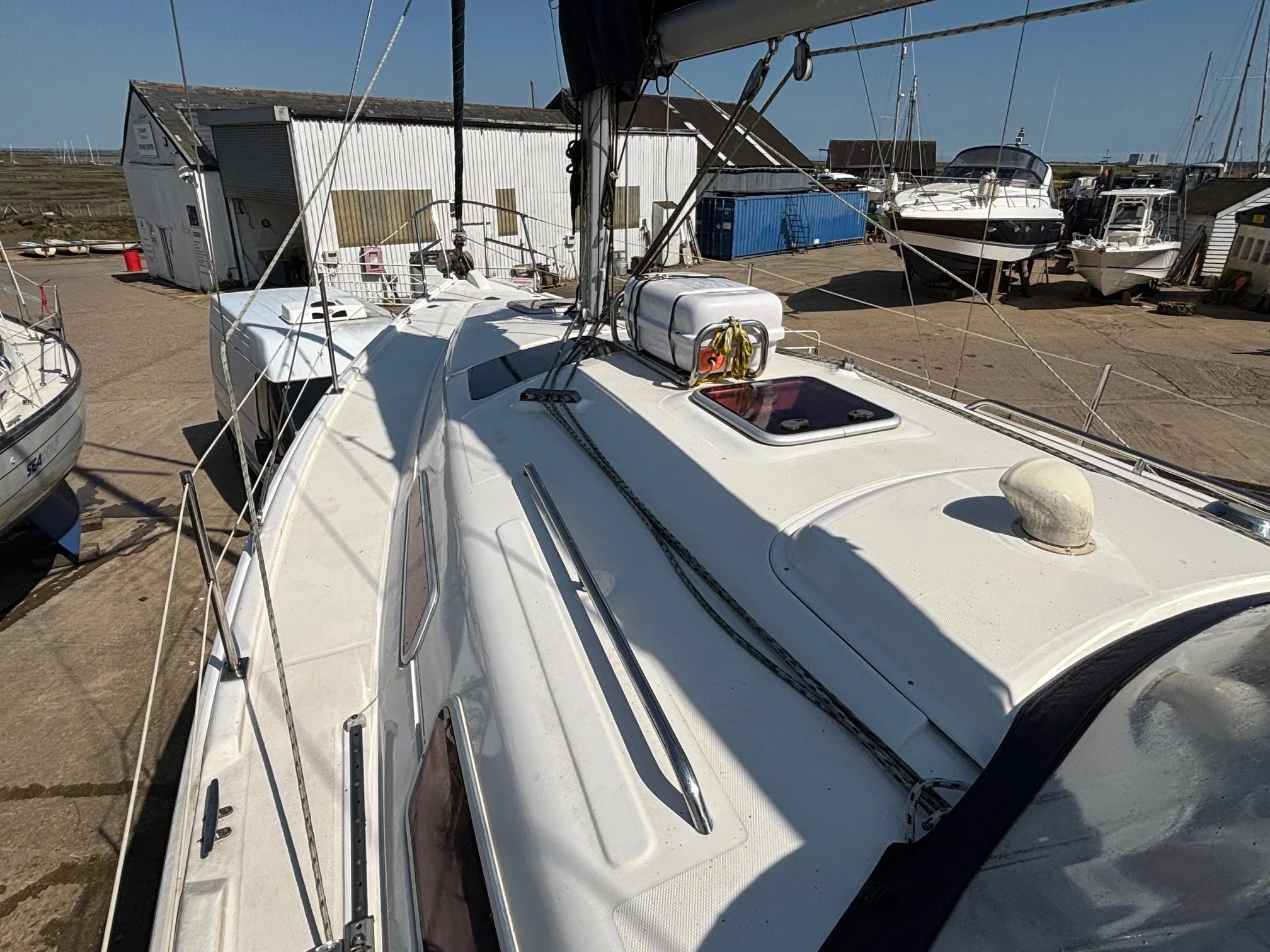

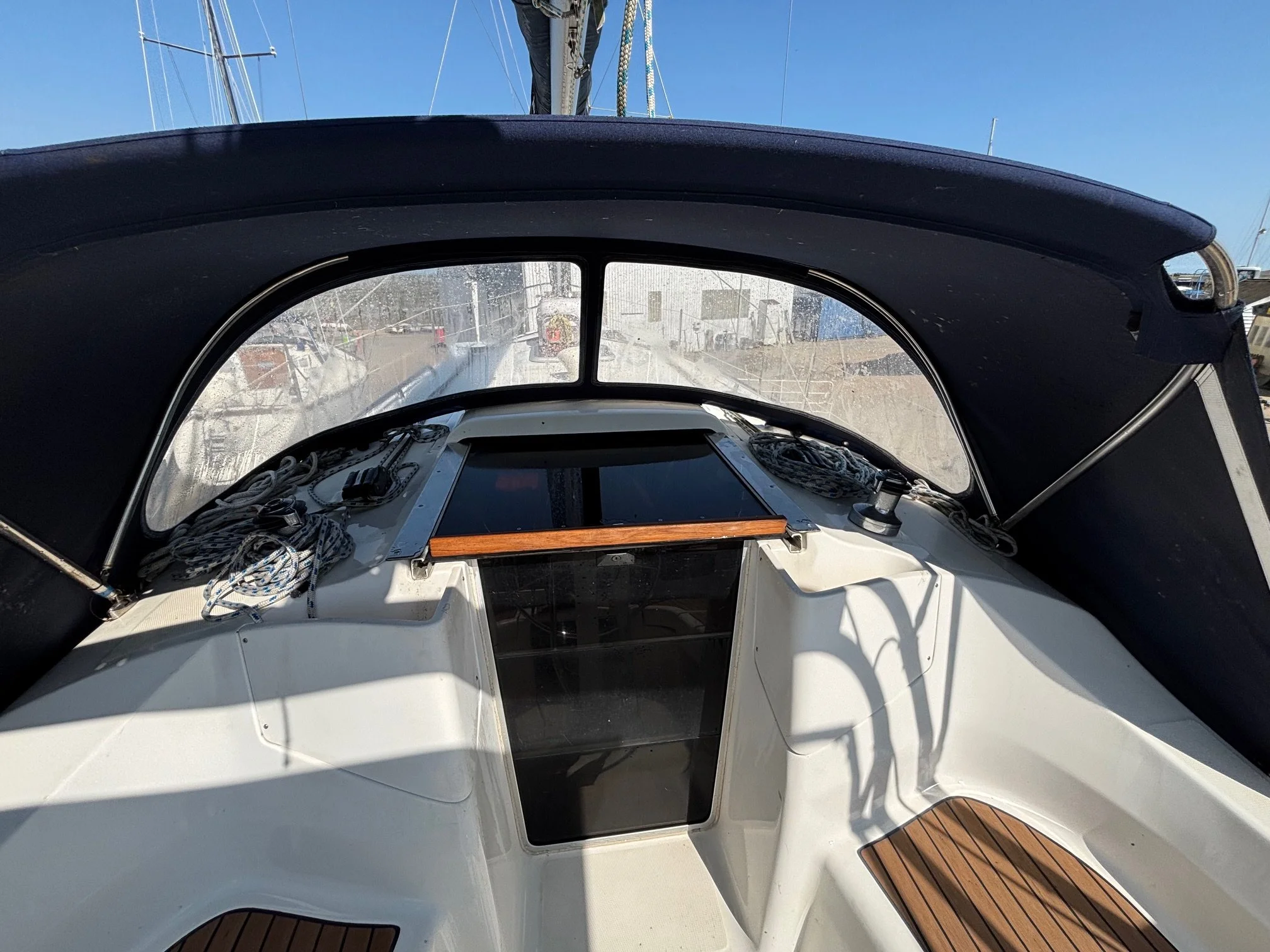

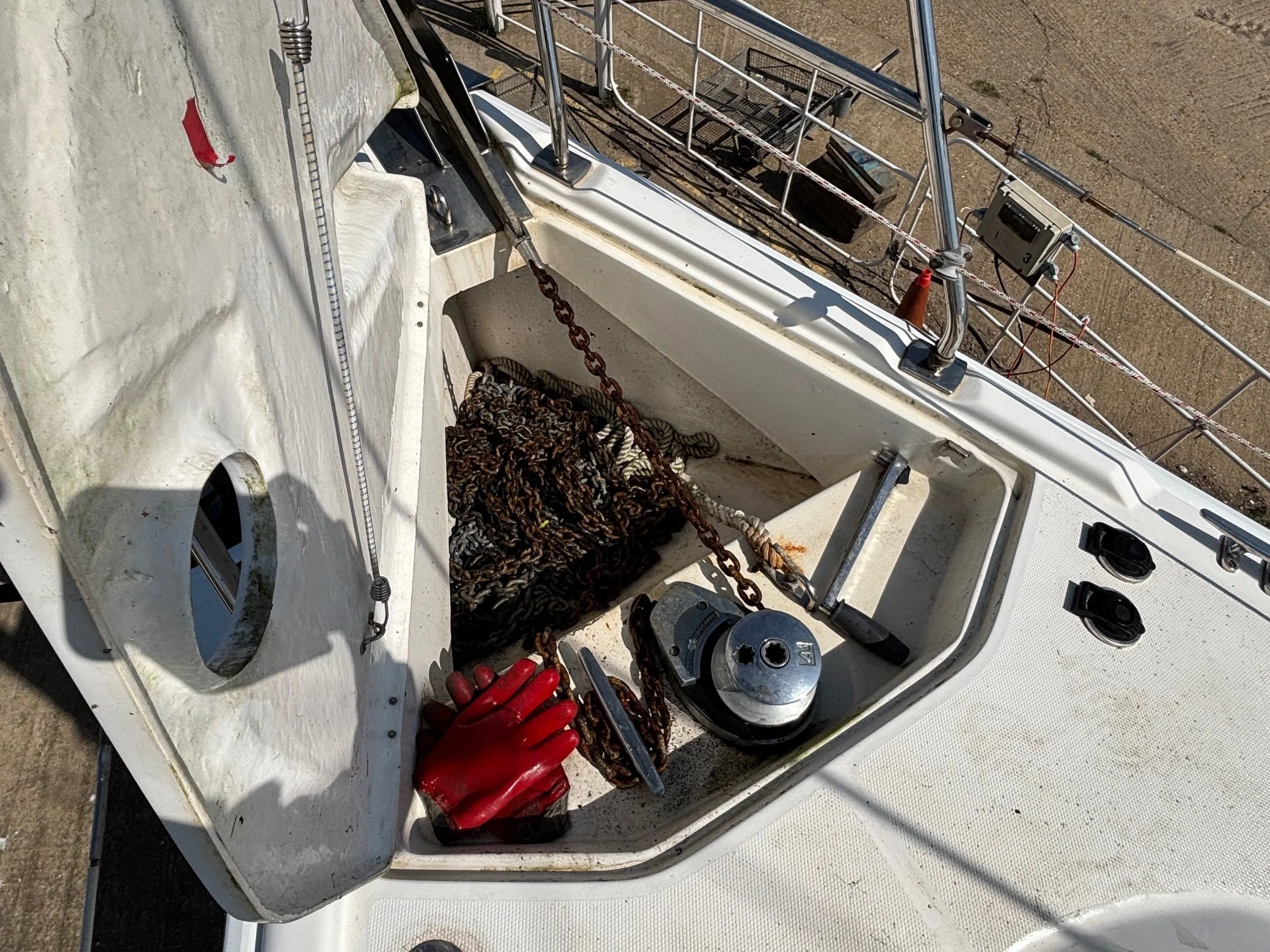

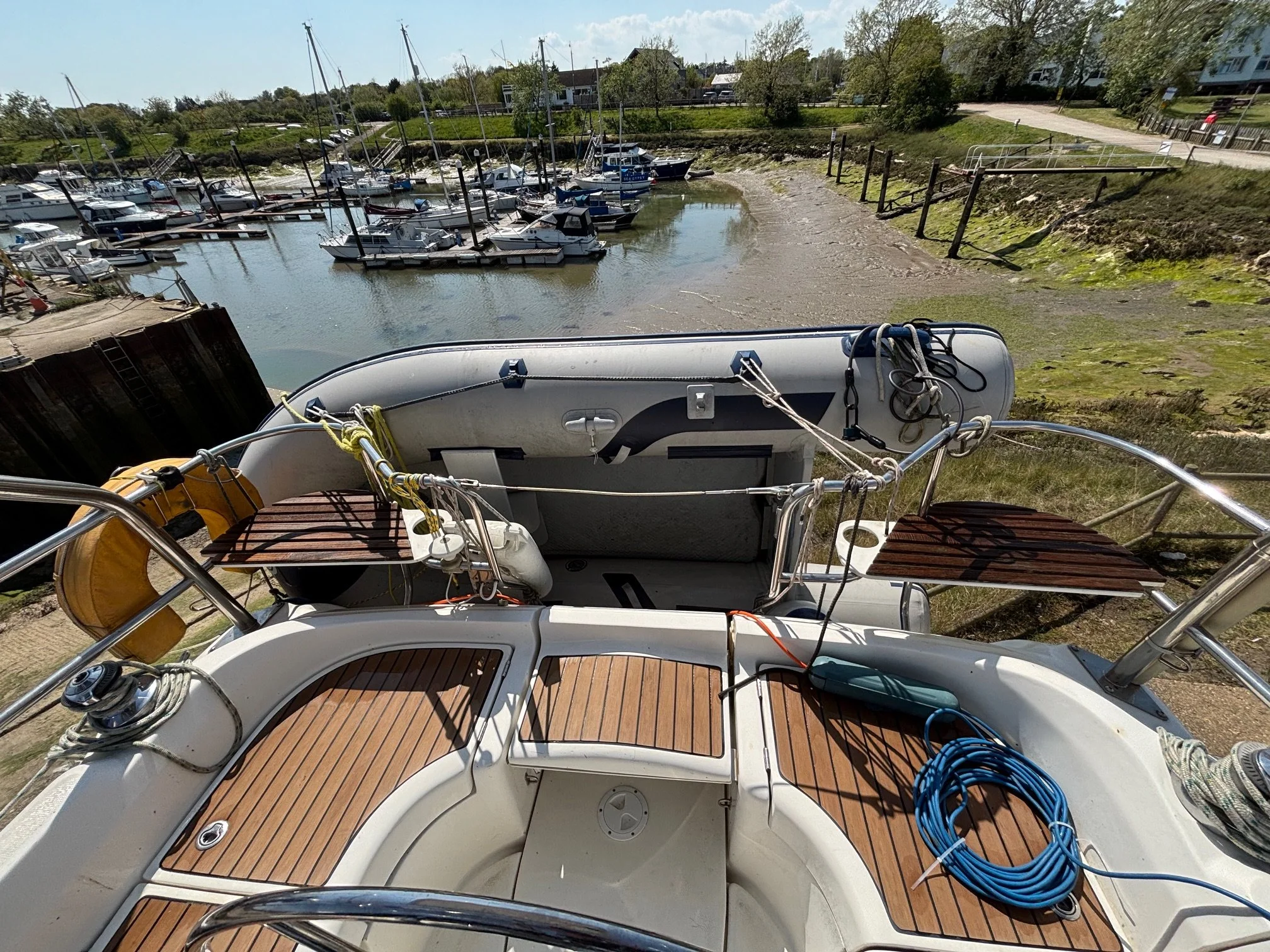

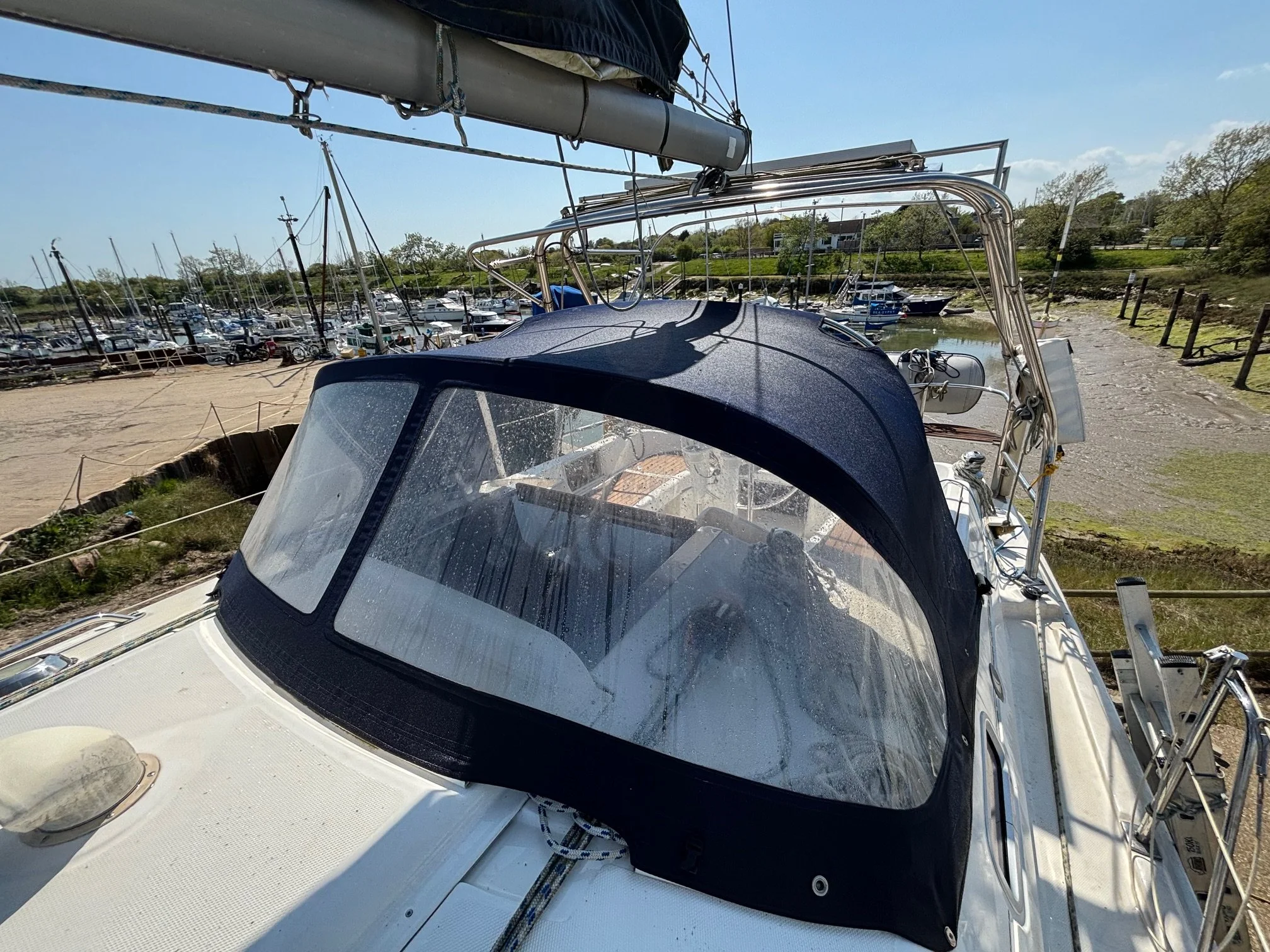

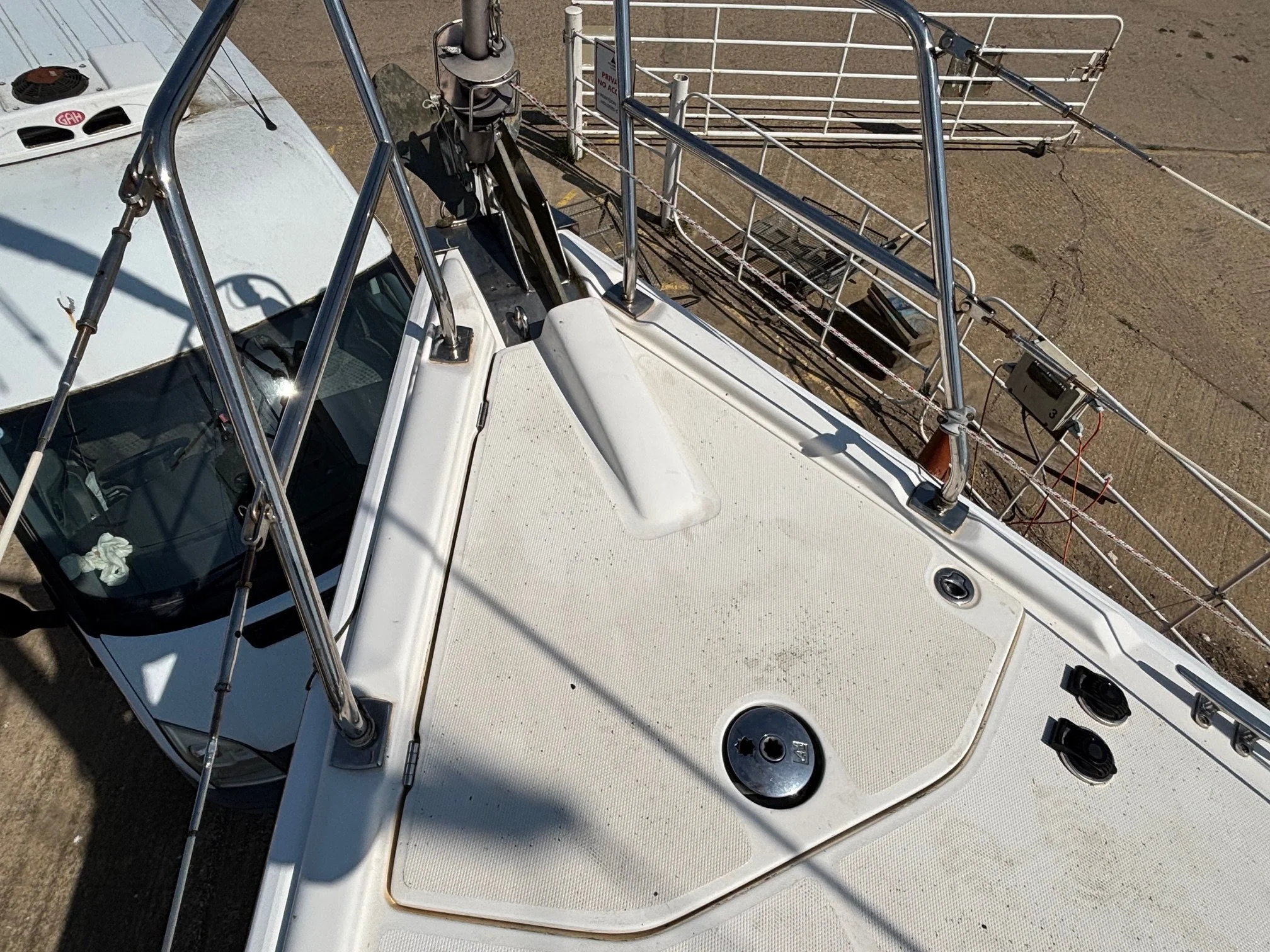

Stainless steel pulpit, pushpit, stanchions and guardwires, blue sprayhood (recent), blue dodgers (recent), bimini, boarding ladder, bathing platform, 2 x Lewmar 30 self tailing sheet winches, 2 x Lewmar 16 self tailing halyard winches, Waveline inflatable dinghy (2022) with Mariner 3.3hp outboard motor, bracket for outboard, 15kg Delta anchor with chain and warp, Simpson Lawrence anchor windlass, mooring warps, fenders, fender step, buckets, hose etc.
Sails

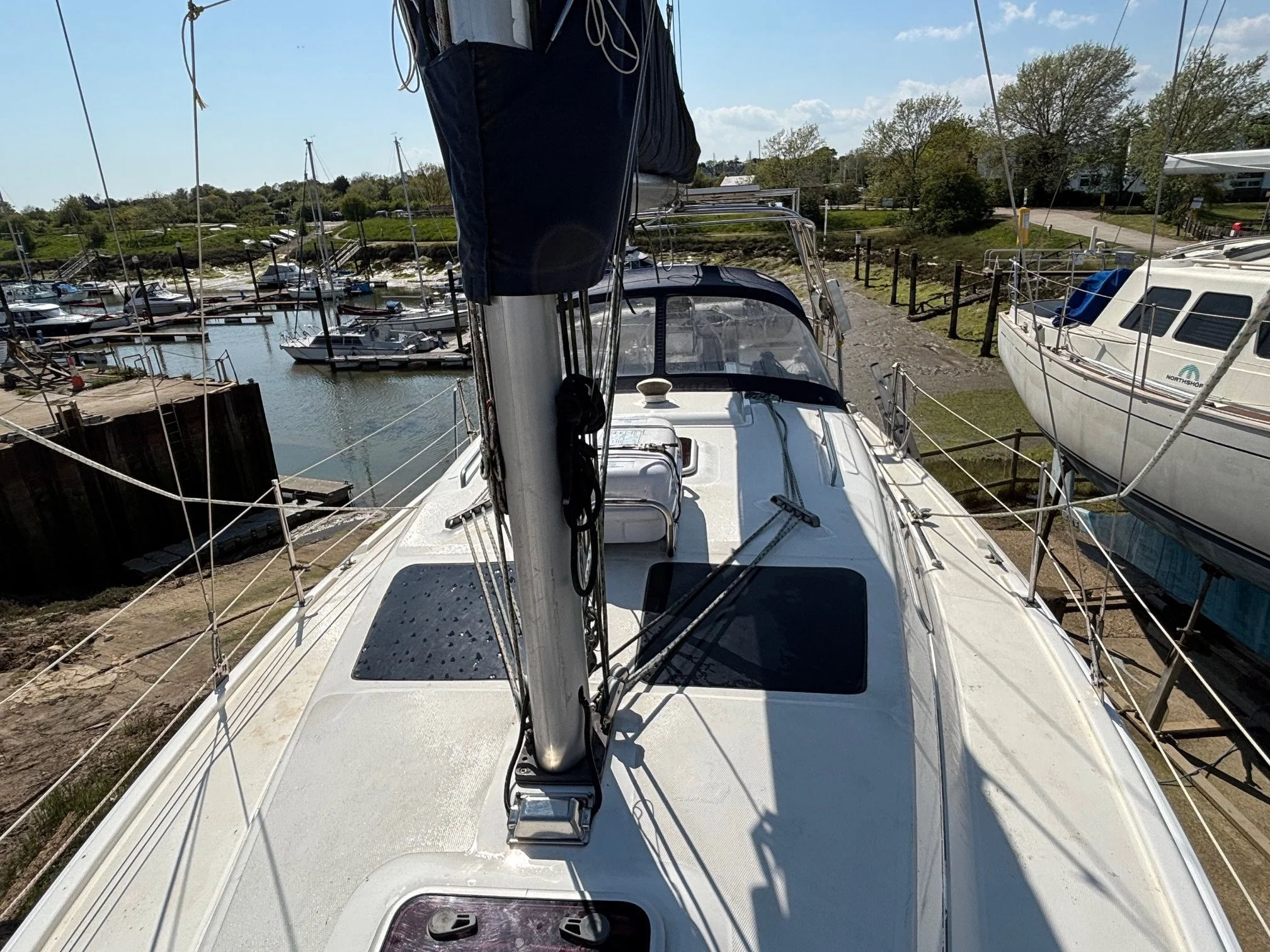

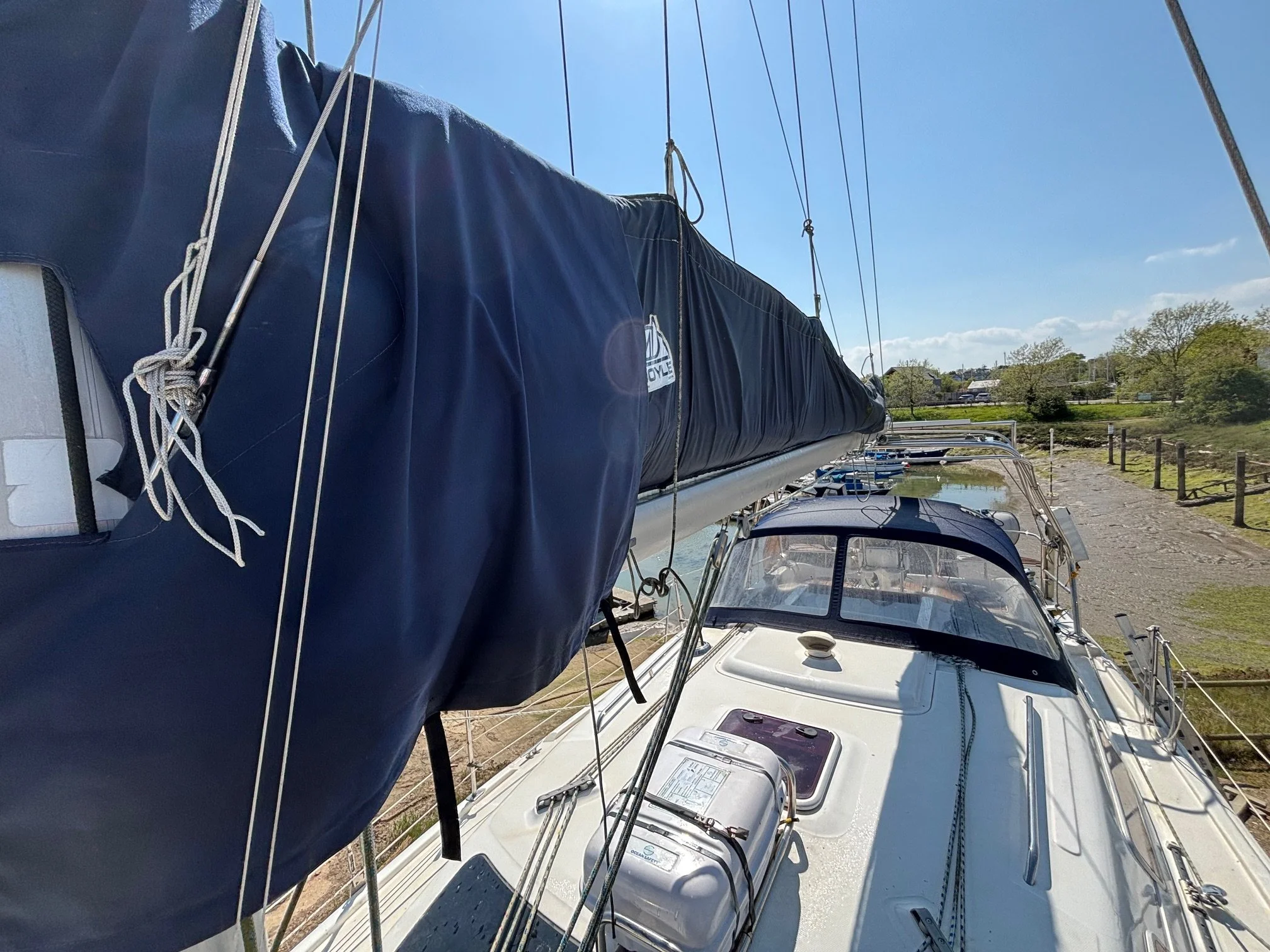

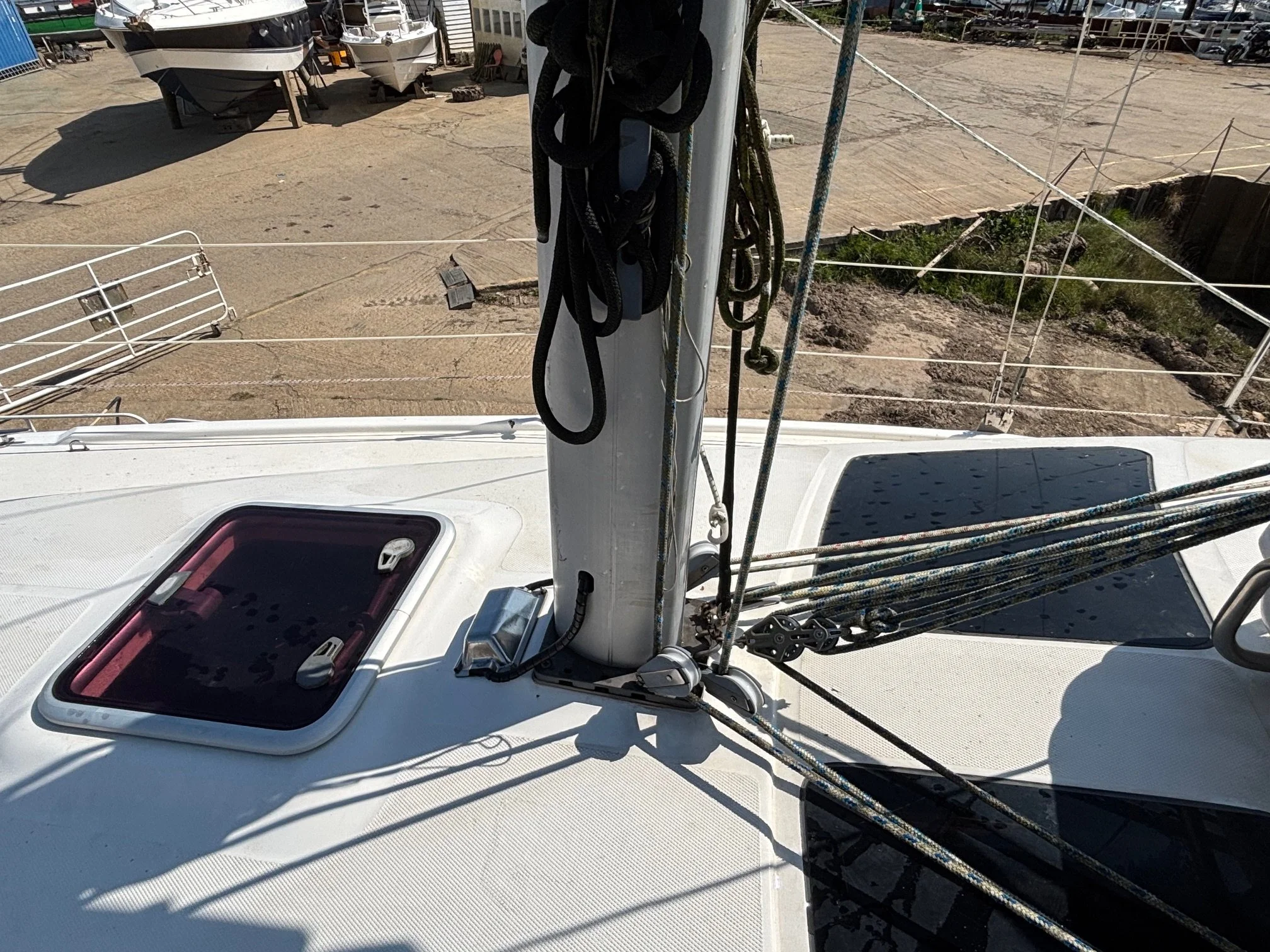

Fractionally rigged sloop. Anodised aluminium mast and boom by Z Spars. Stainless steel standing rigging (2005). Terylene running rigging (2005). Slab reefing mainsail with lazyjacks. Headsail furling system. Lines led aft to cockpit.
Mainsail - Doyle - 2005 - good
Furling genoa - Doyle - 2005 - good
Domestic

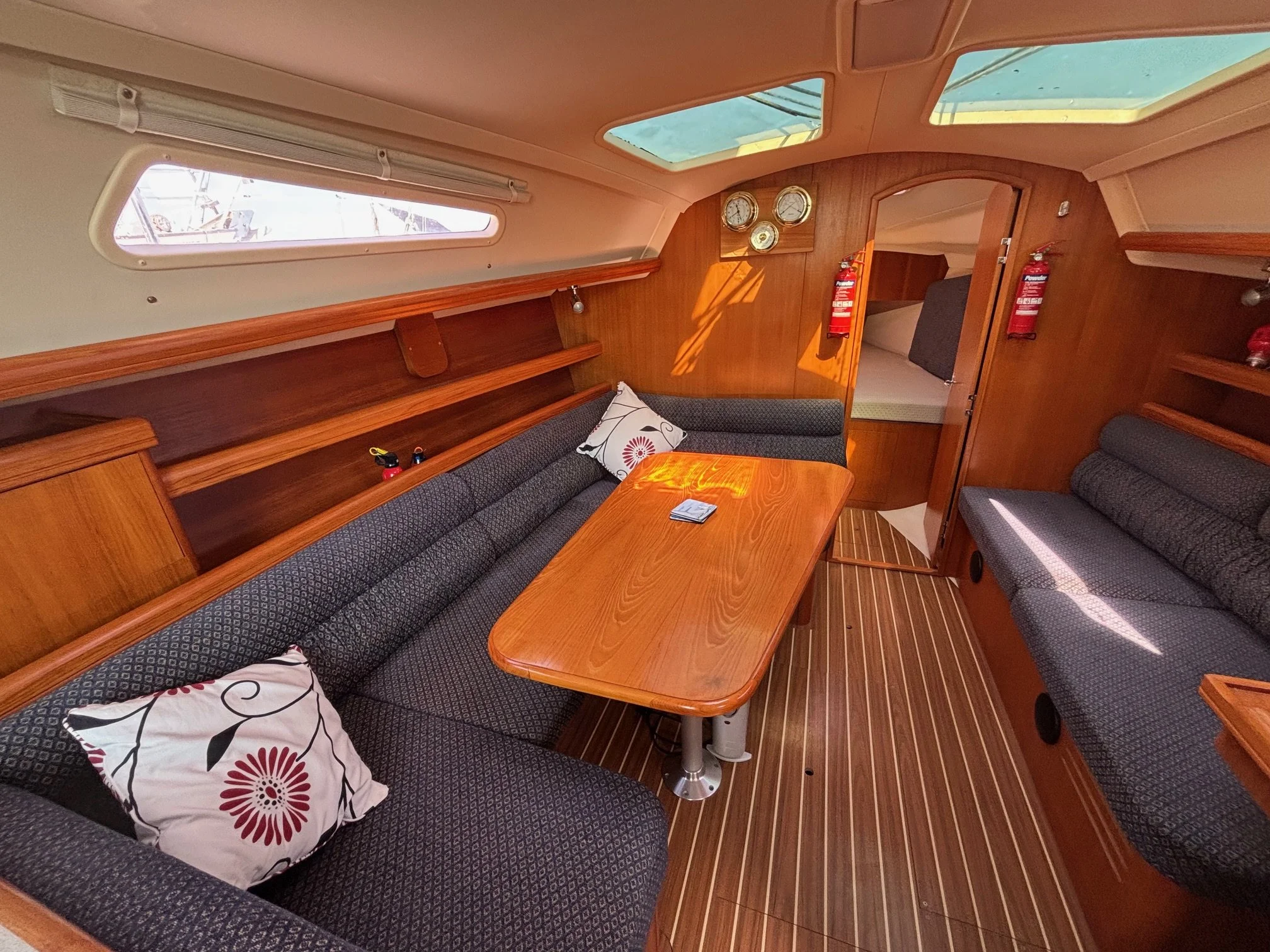

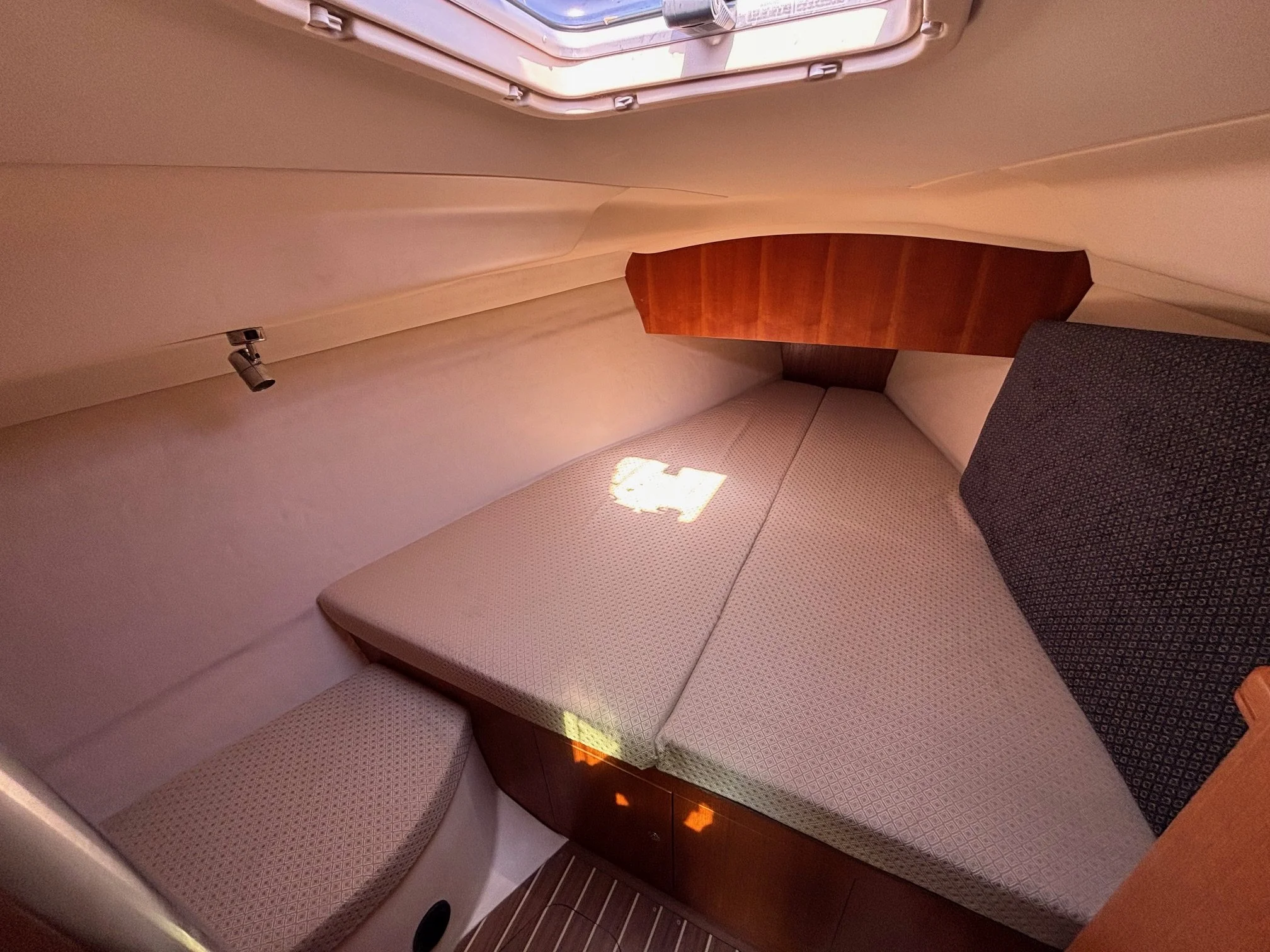

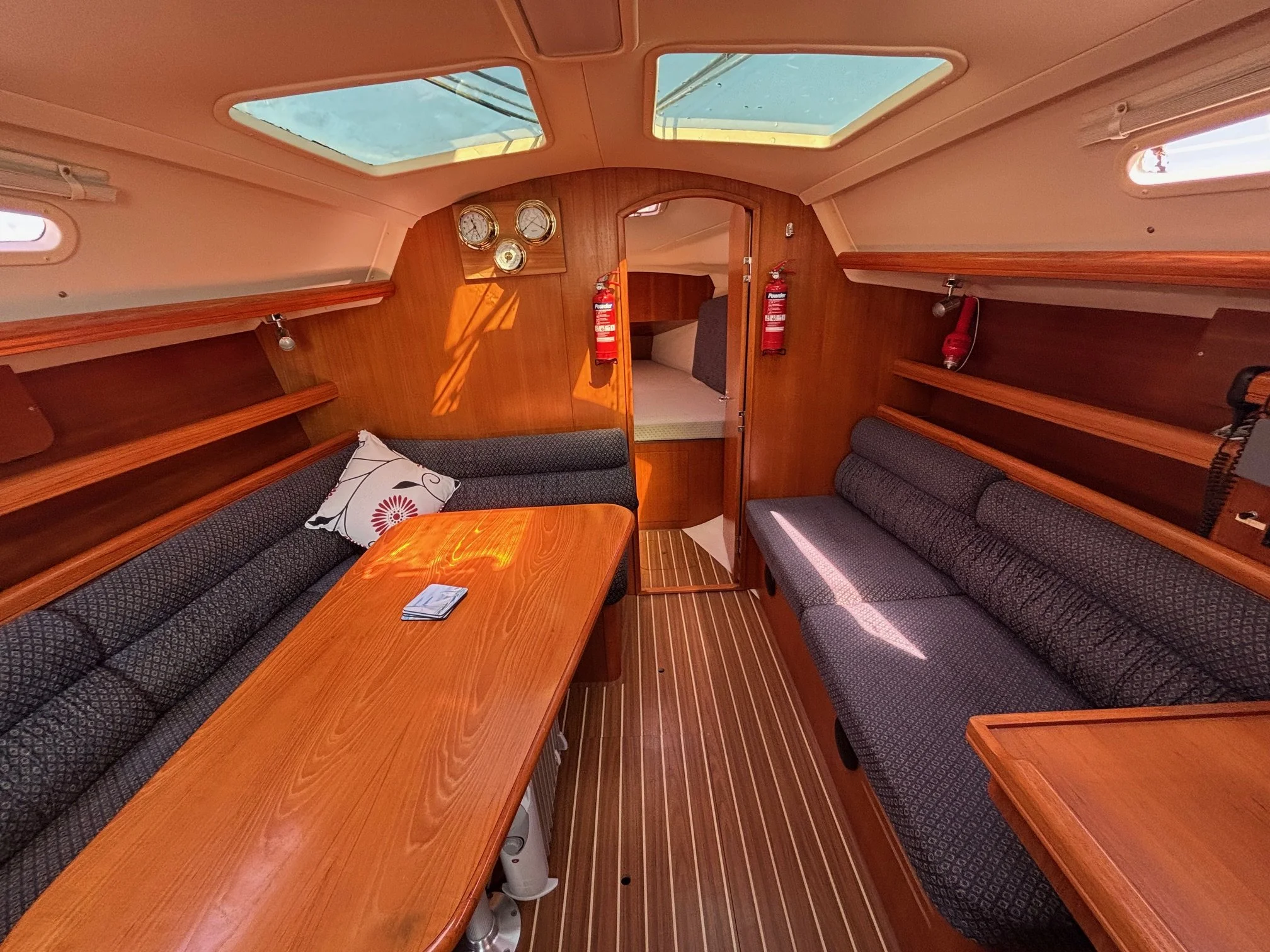

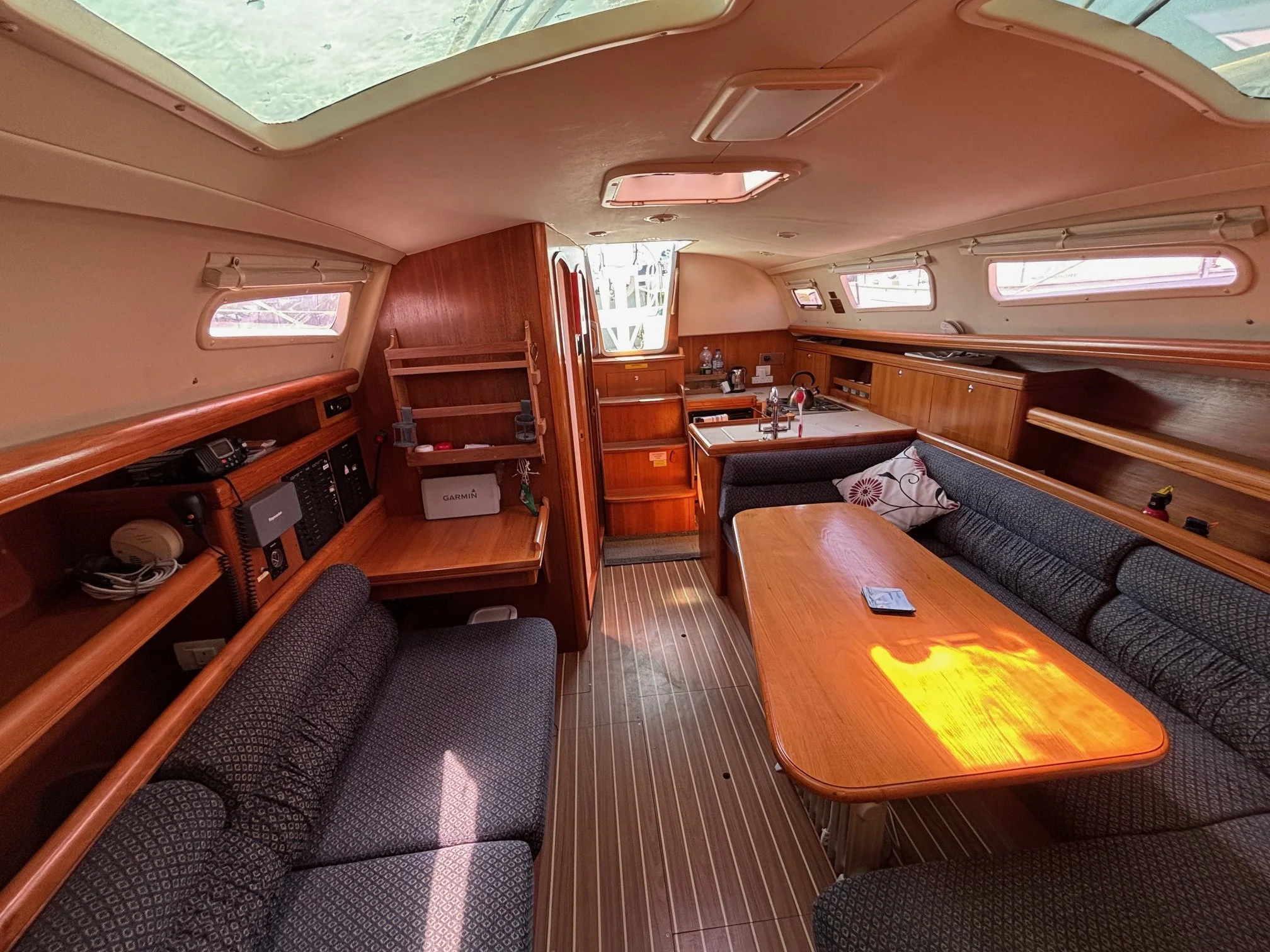

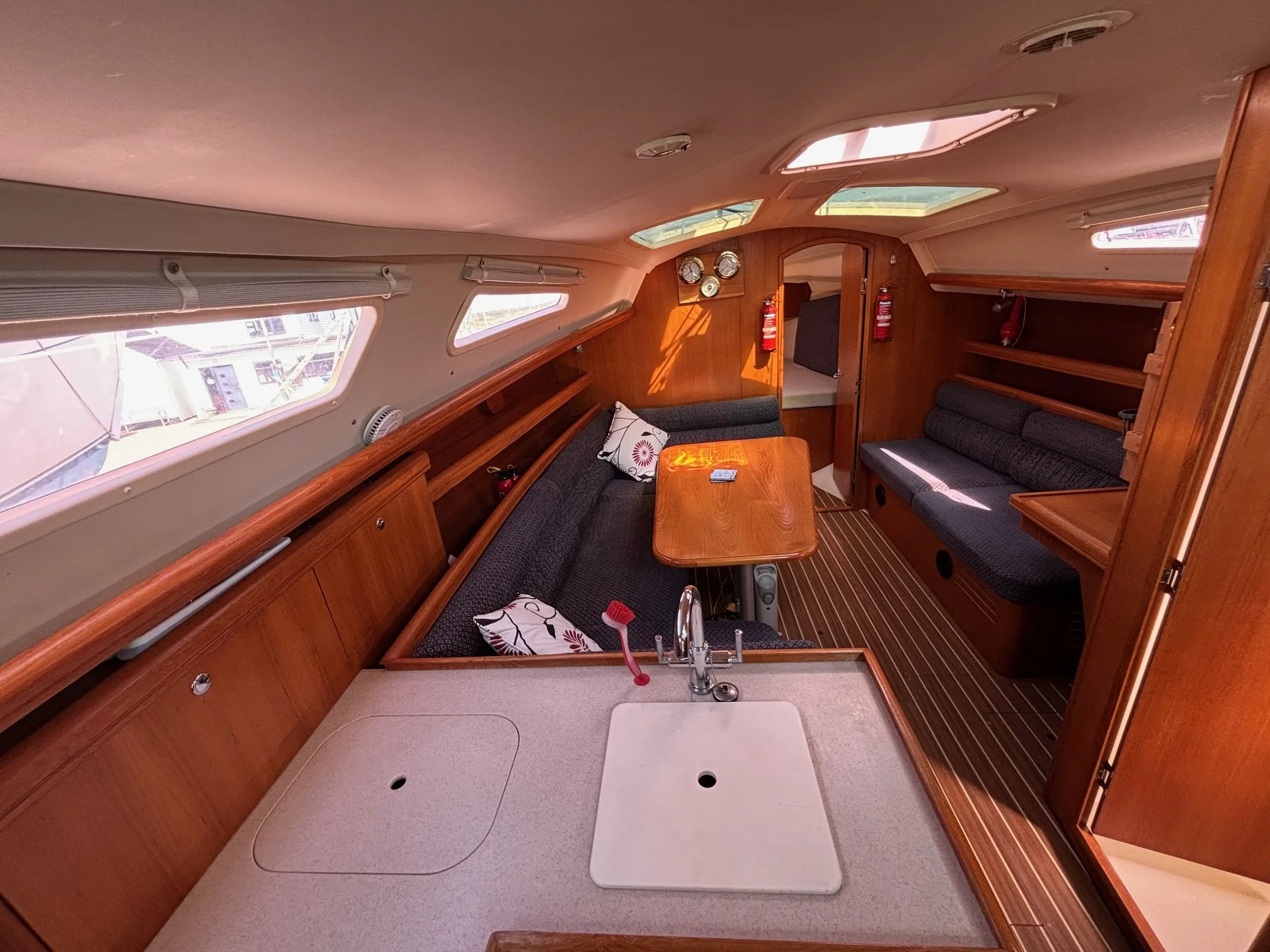

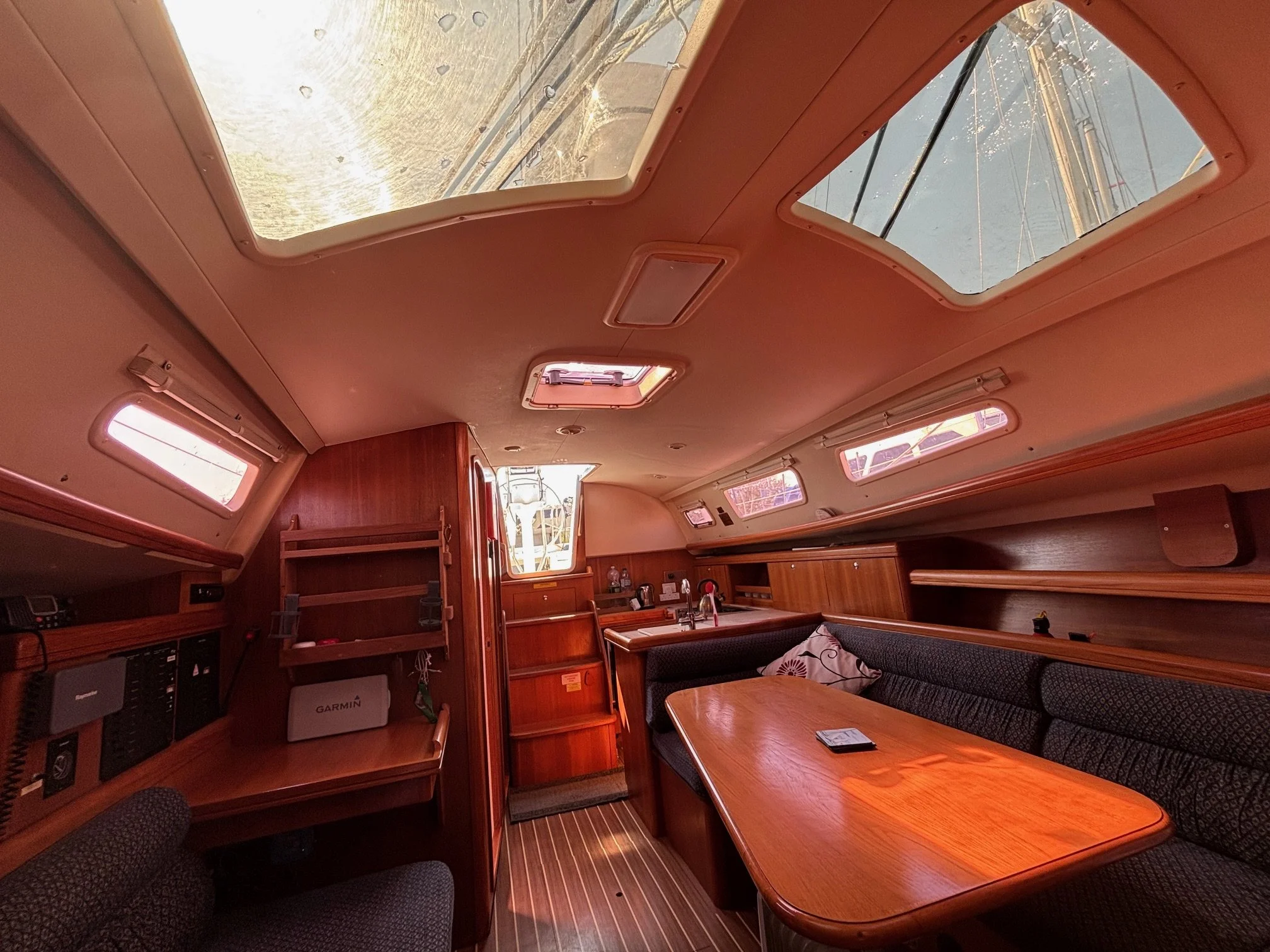

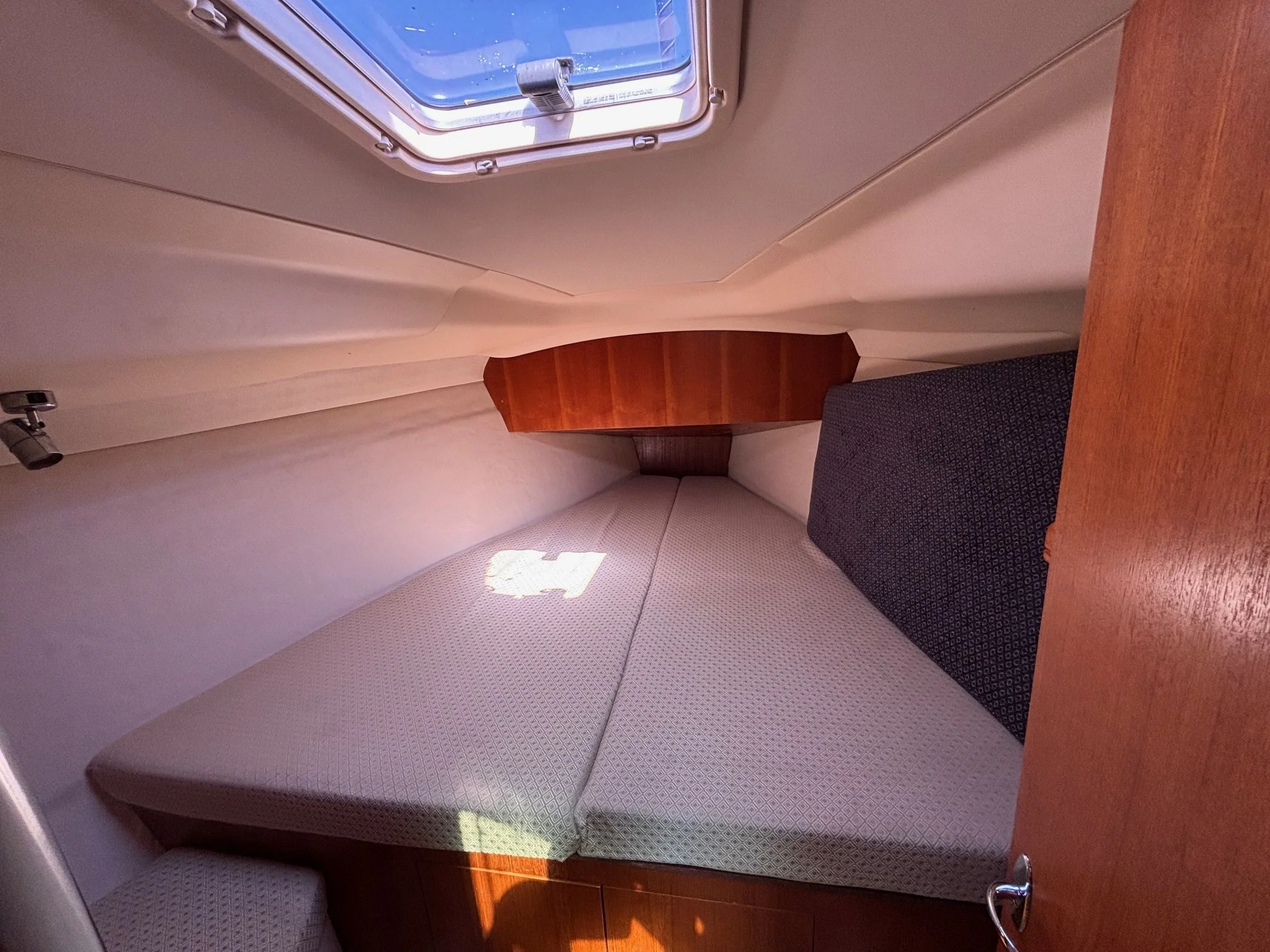

The layout offers up to six berths with two double sleeping cabins separate from the main accommodation. In the forecabin, V berth with stowage under. Opening hatch to foredeck. In the saloon, settee berth to starboard with dinette opposite. A fixed saloon table which drops to allow an insert to make a double berth.

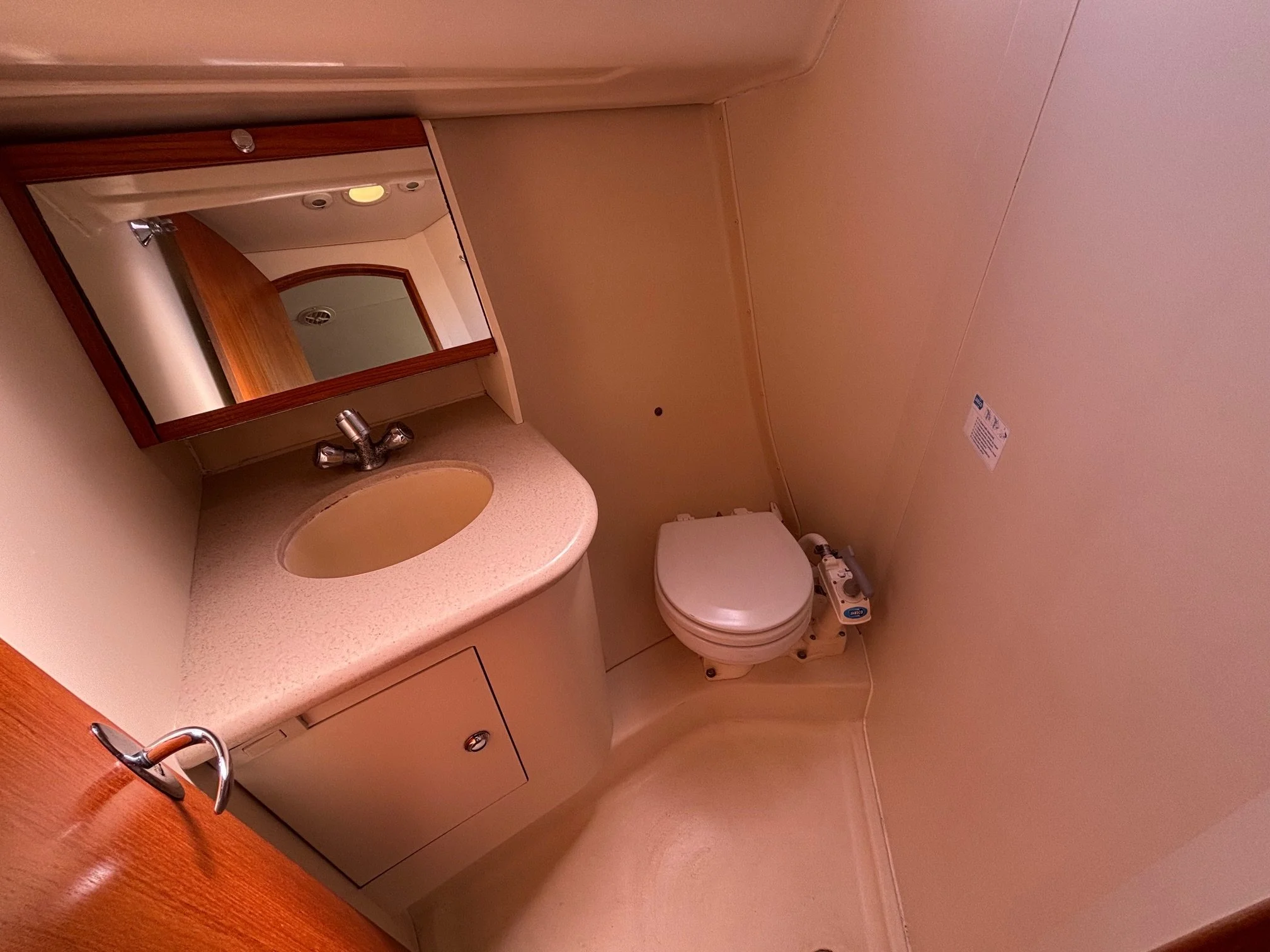

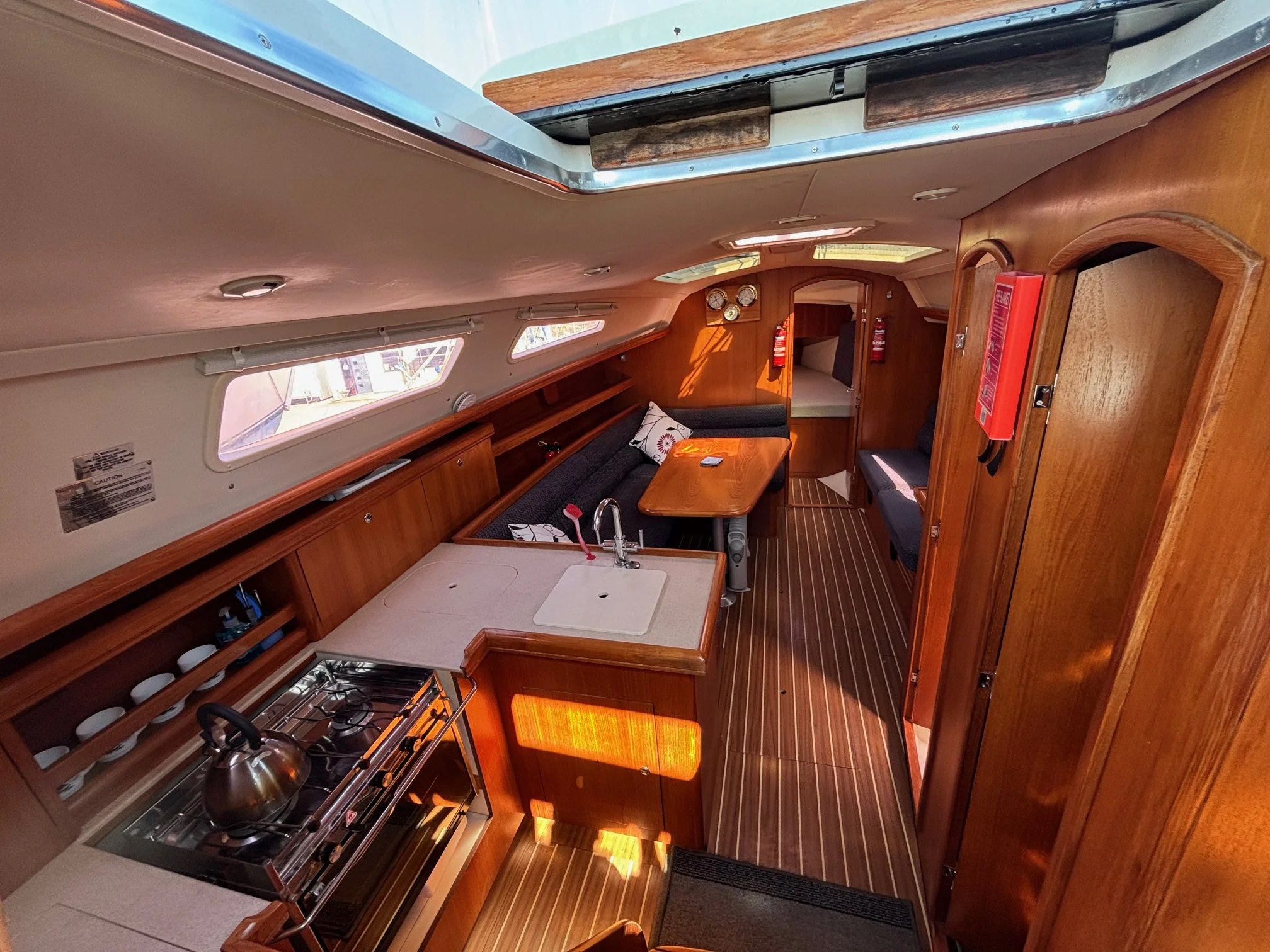

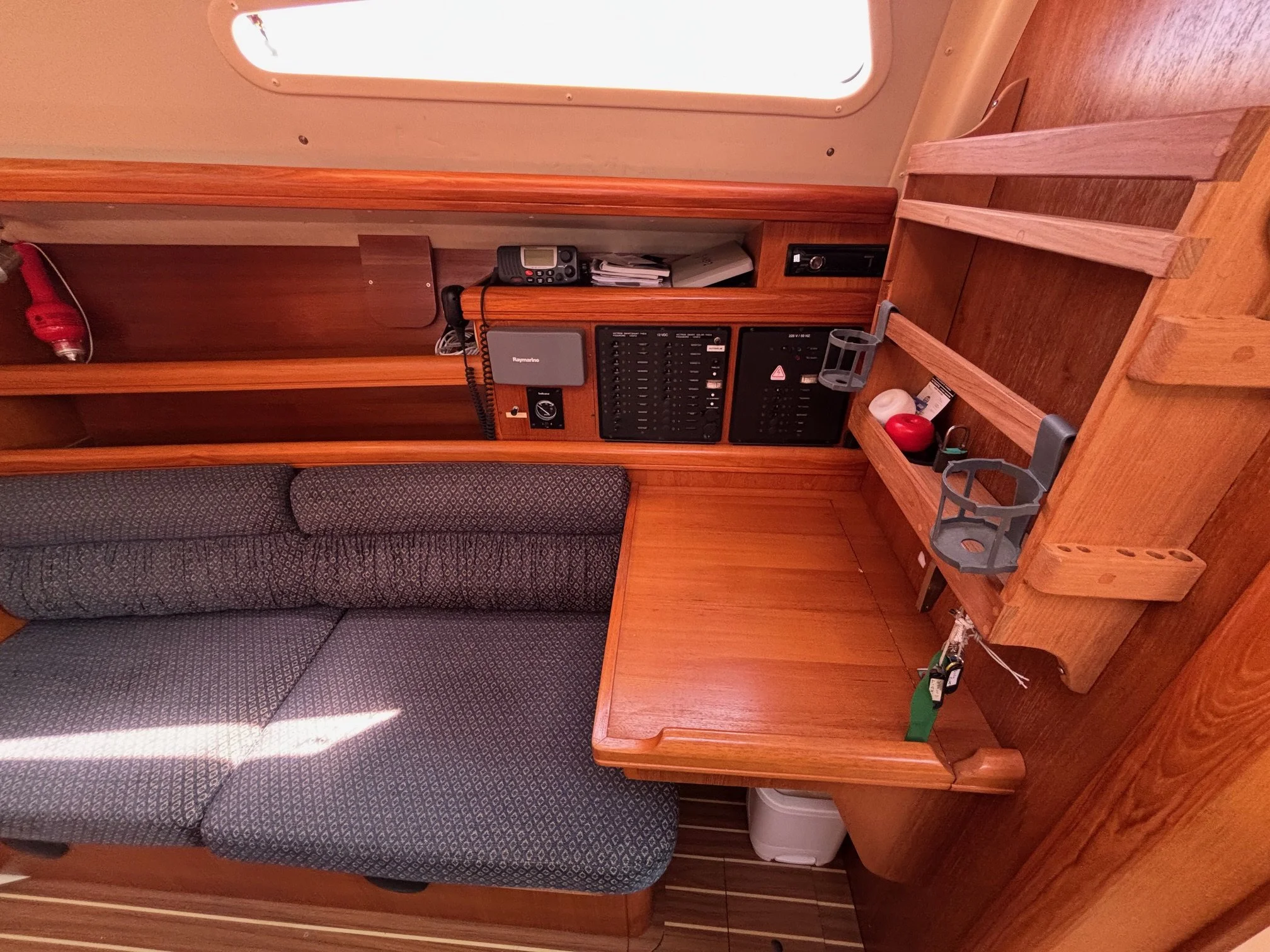

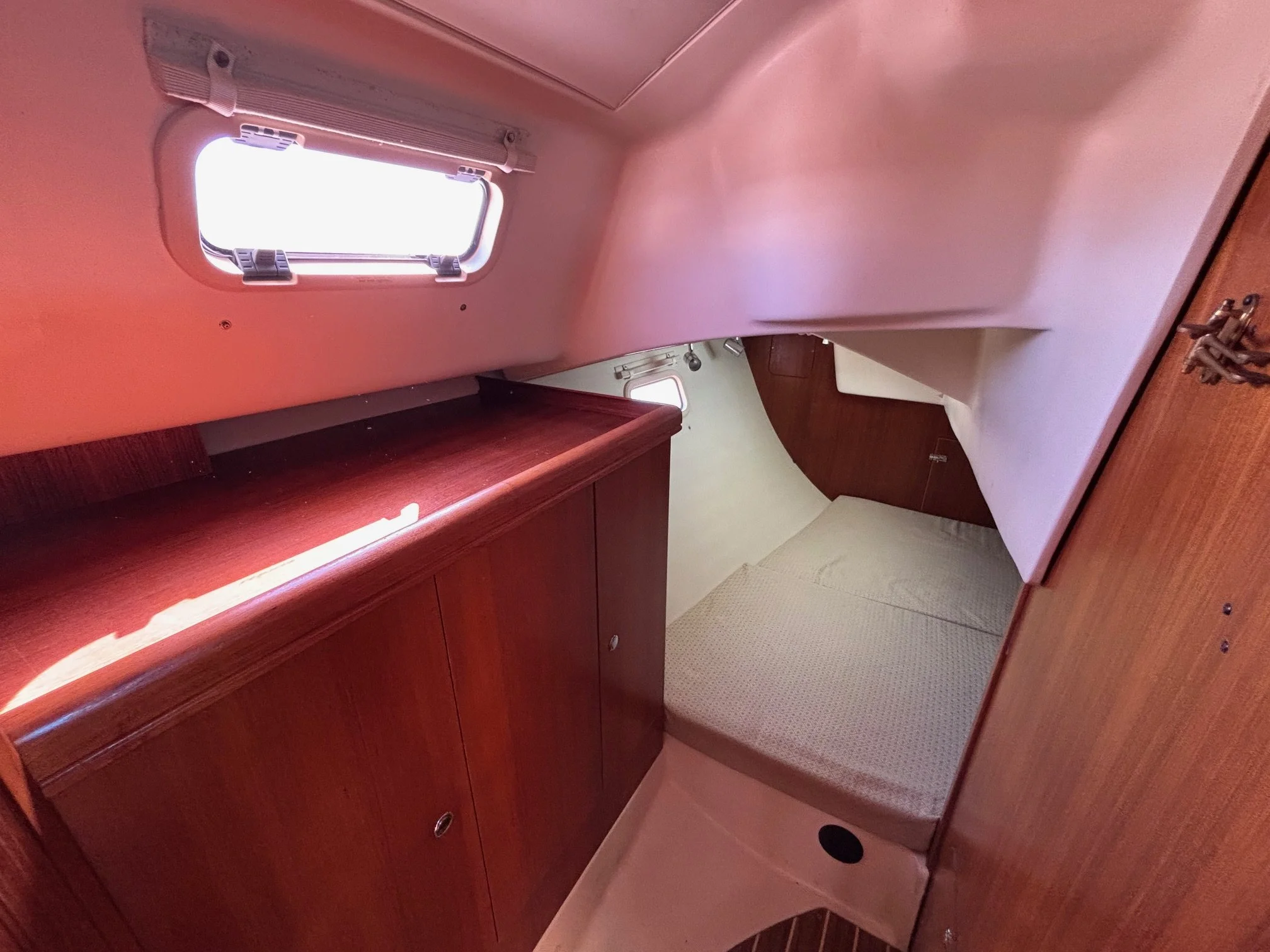

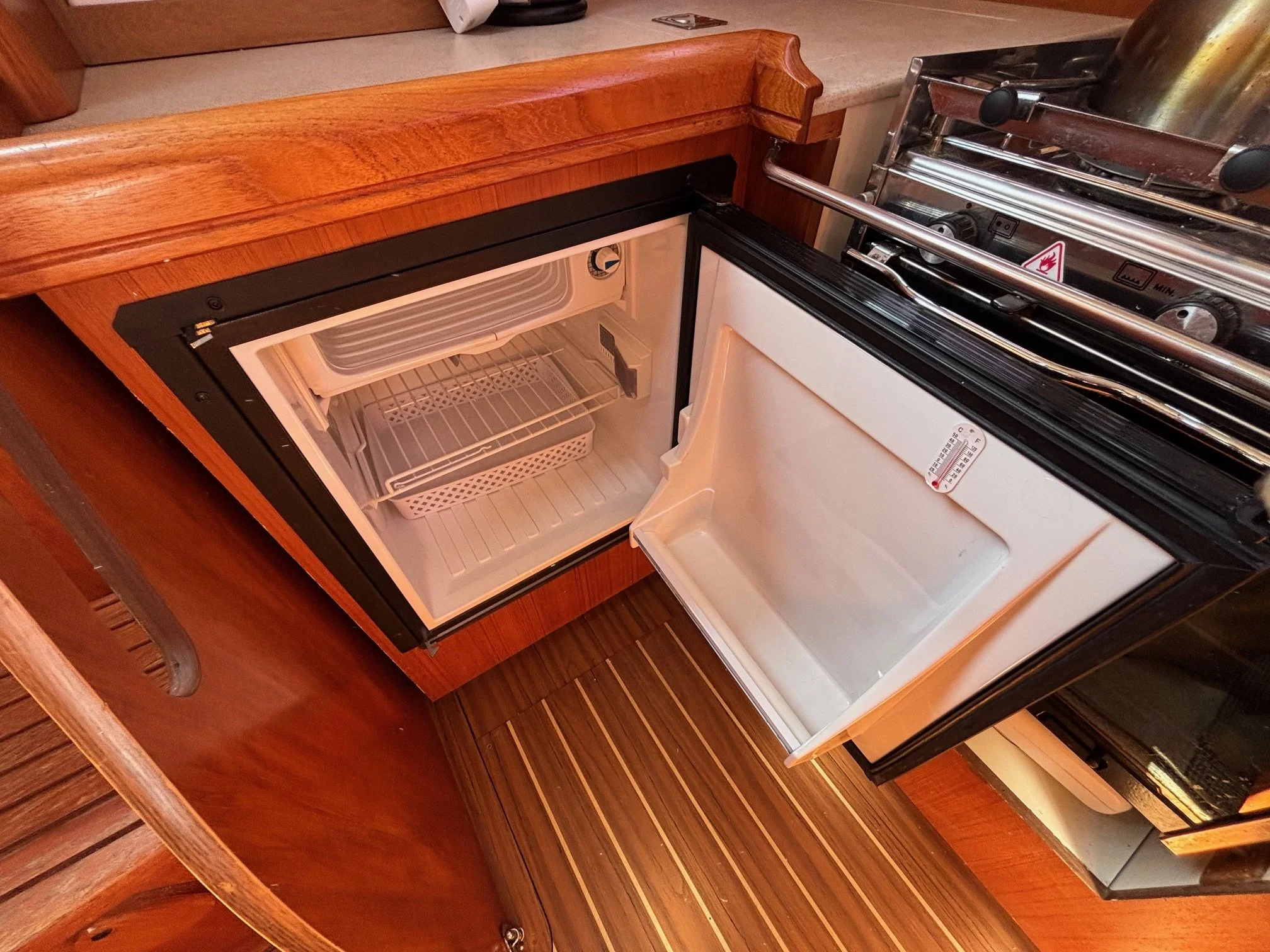

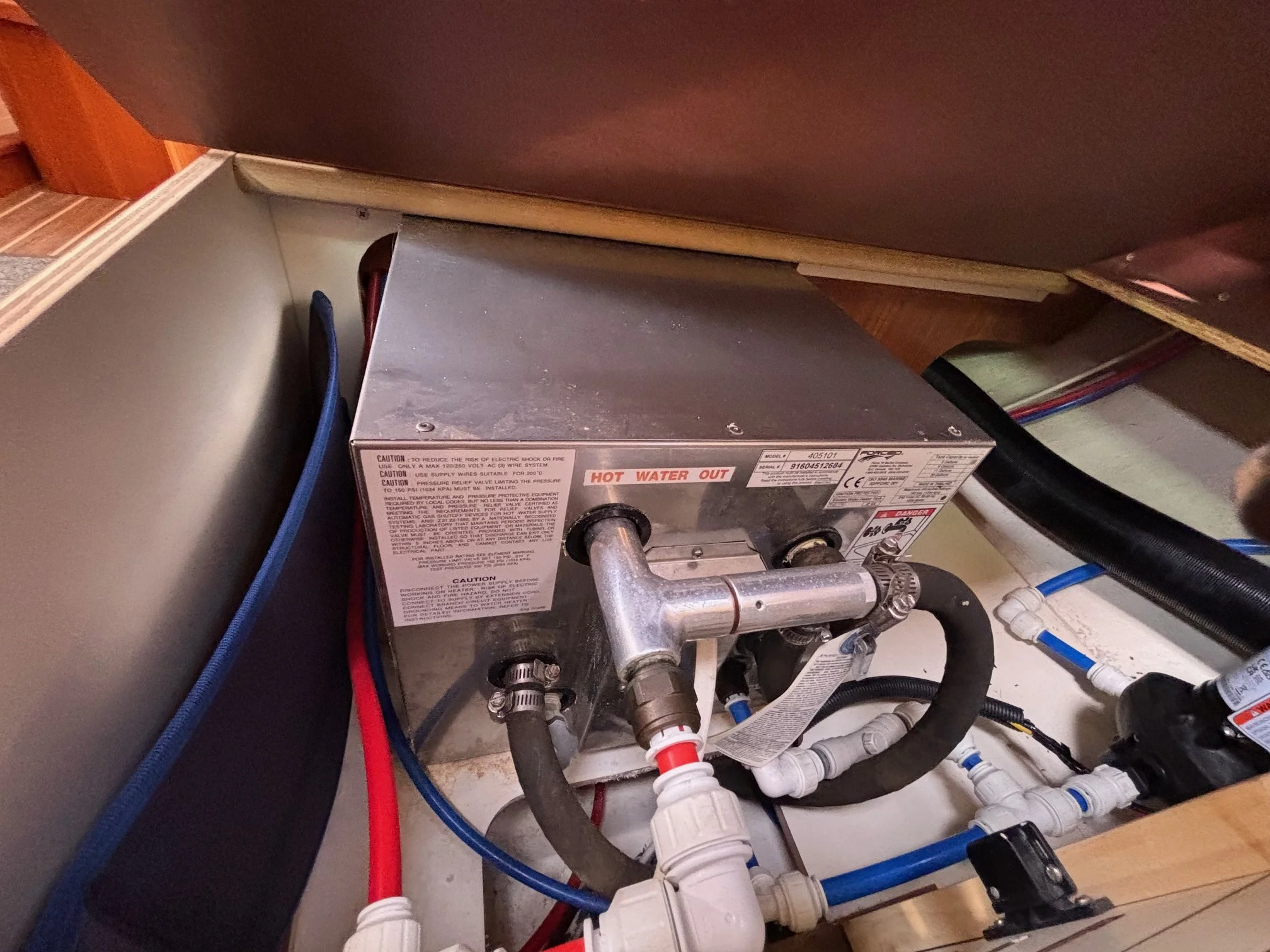

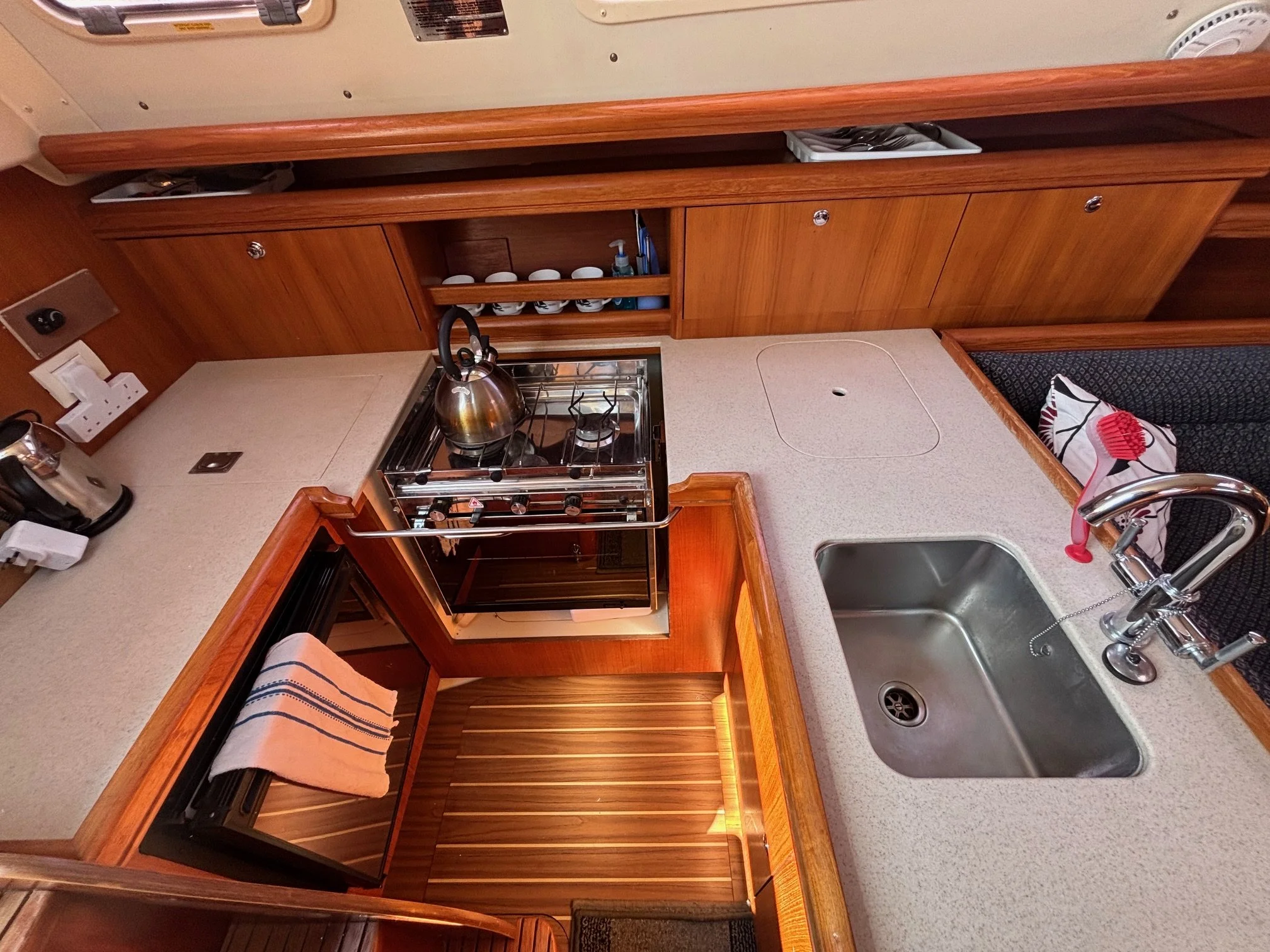

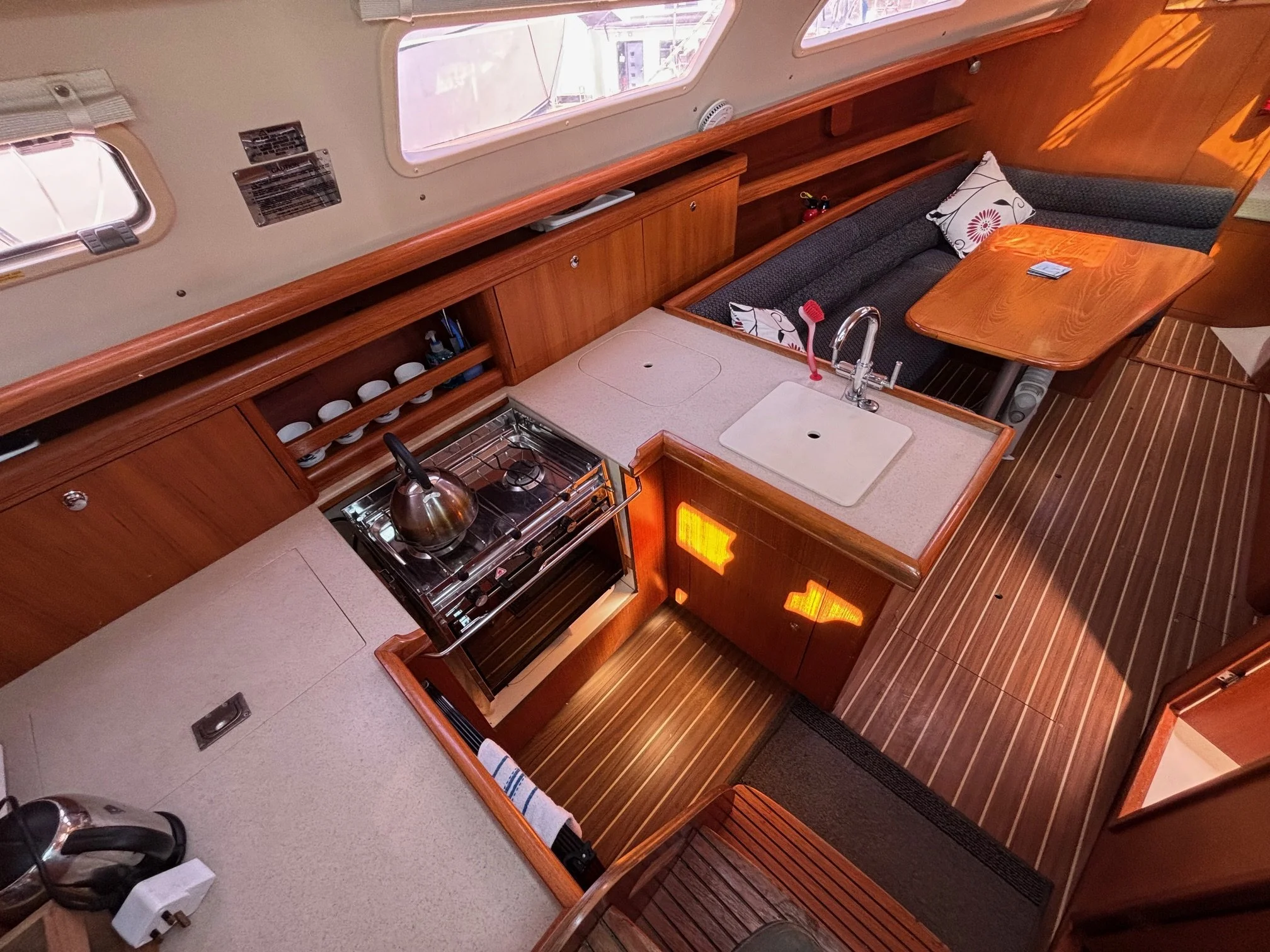

Eberspacher hot air diesel heating system (2025/6). Radio.CD player (2016) with speakers. Chart table to starboard with galley opposite. Two burner gimballed gas cooker with grill and oven. Twin stainless-steel sinks with a hot and cold pressurised water system with hot water from 240v immersion heater or engine calorifier. 190-litre freshwater capacity. Front opening refrigerator. Separate heads compartment with marine toilet with macerator, shower and washbasin. Aft cabin with double berth and hanging locker. Blue fabric upholstery. Curtains.
Owners Comments

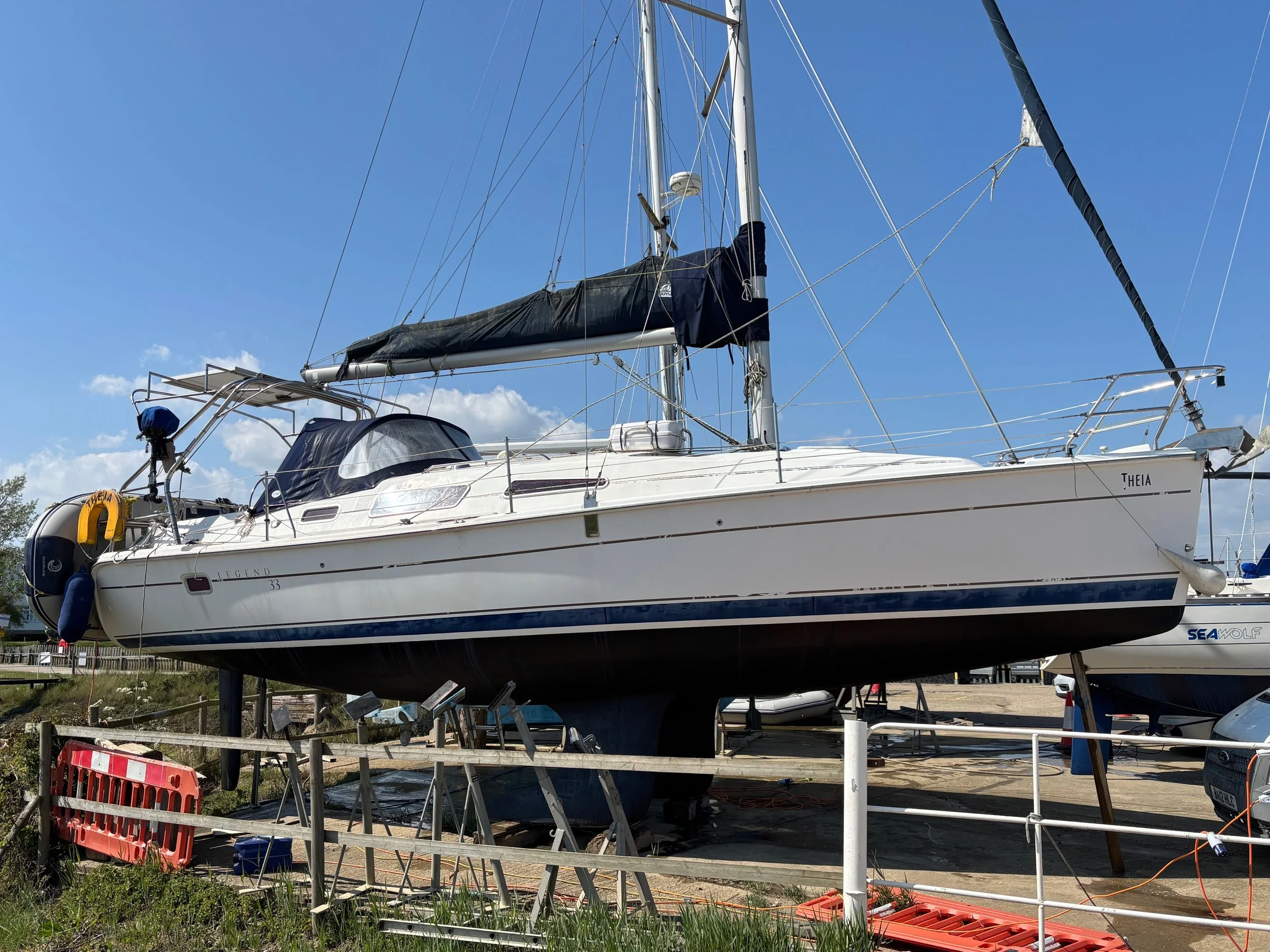

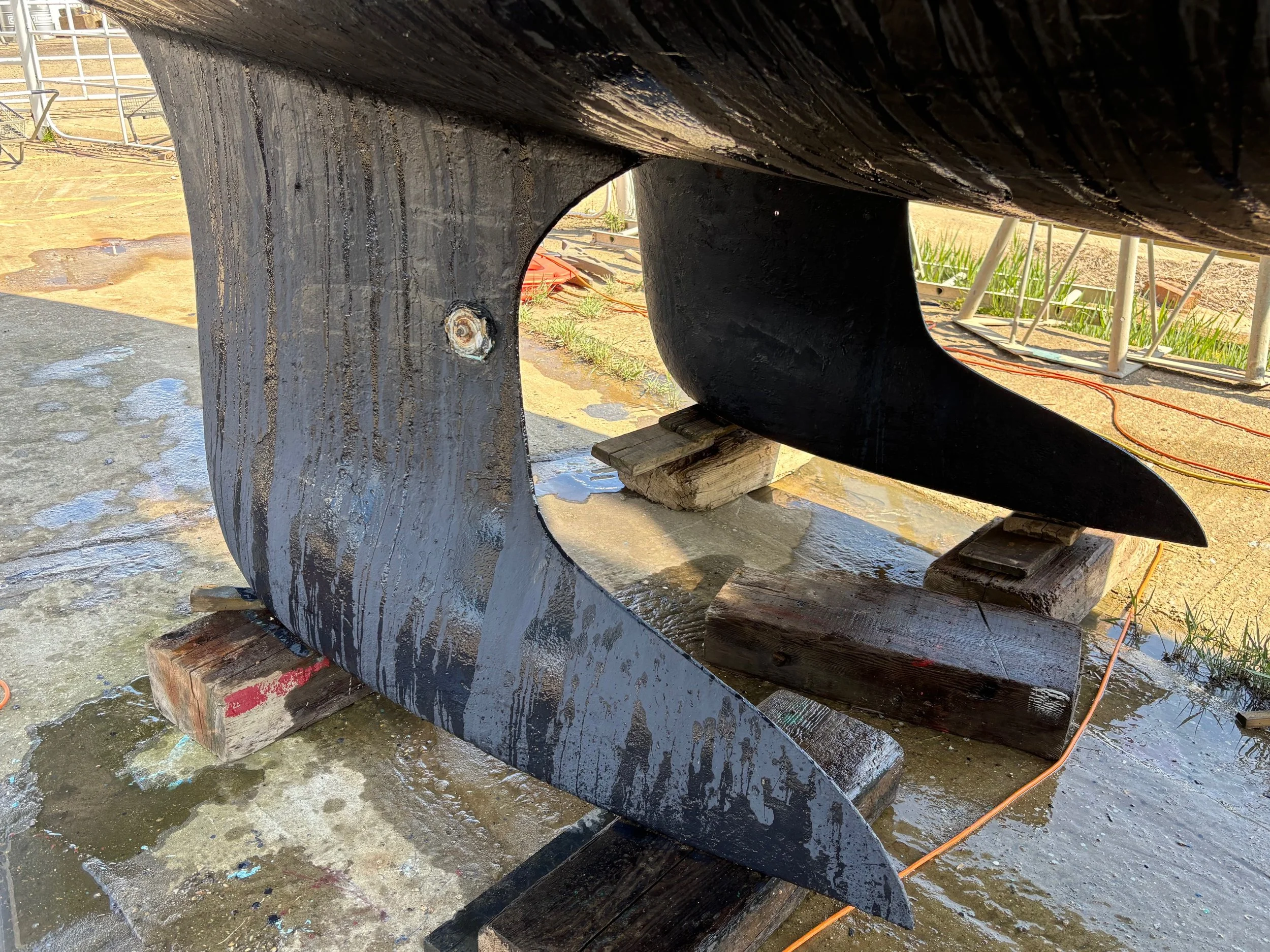

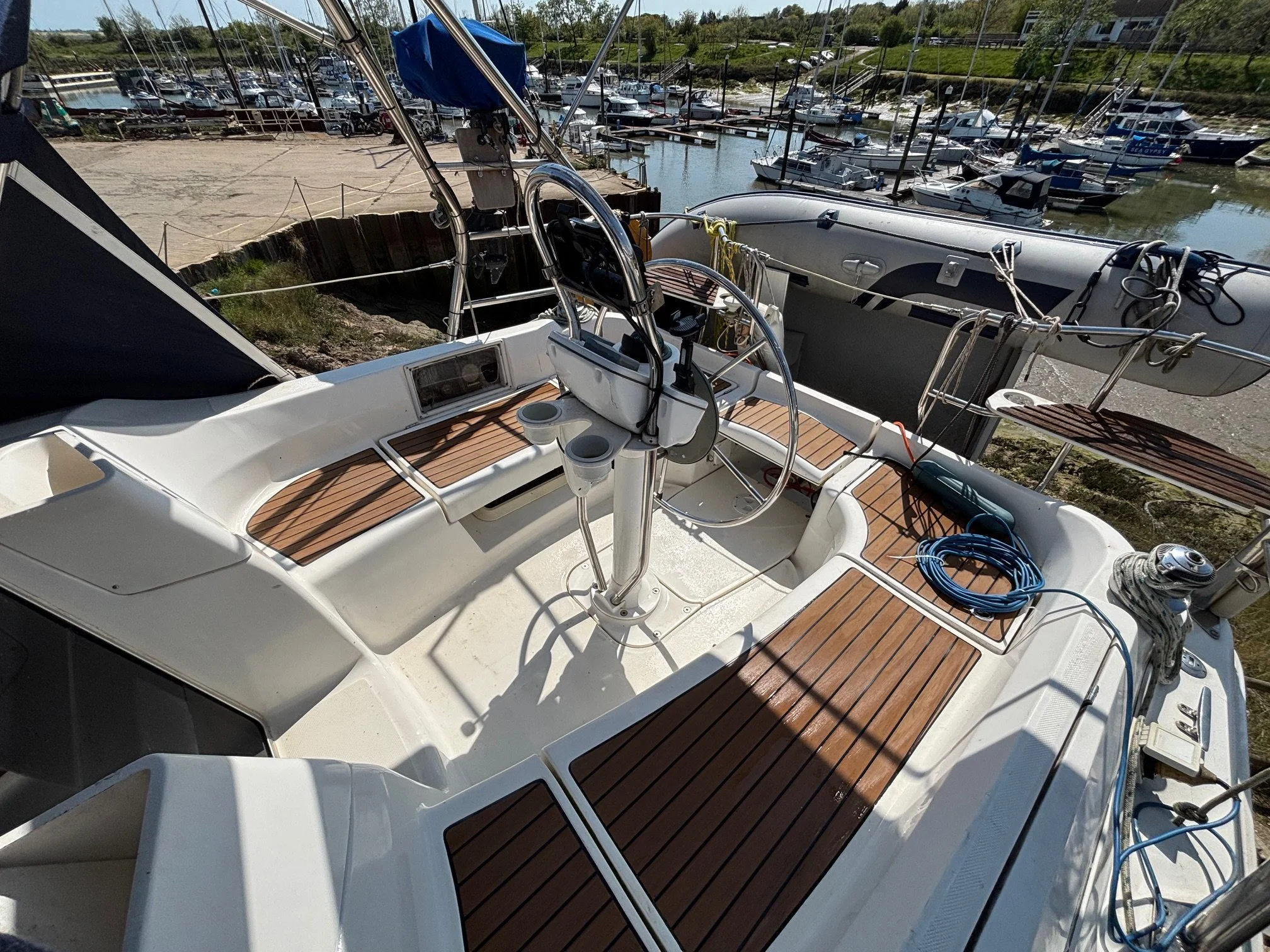

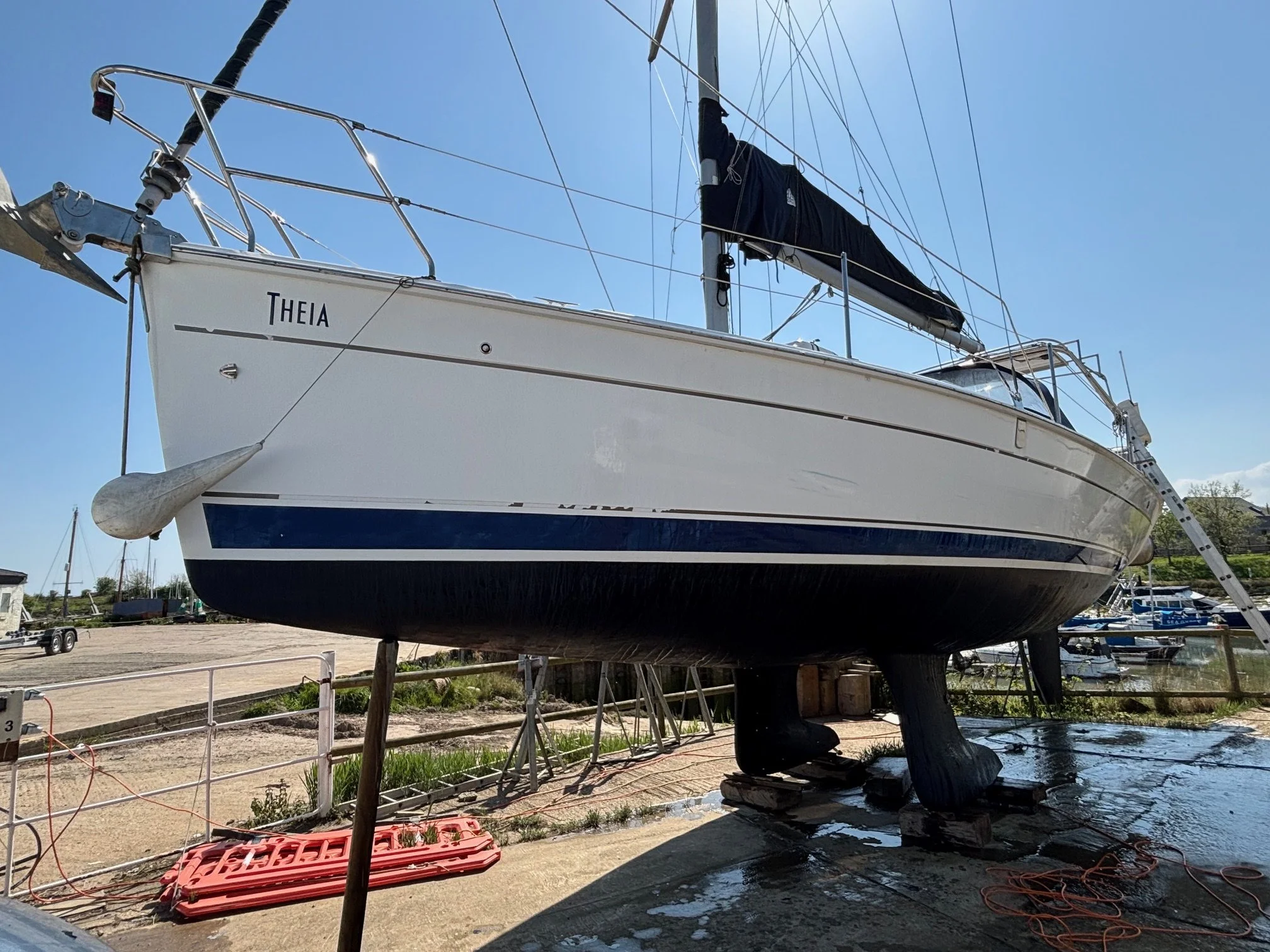

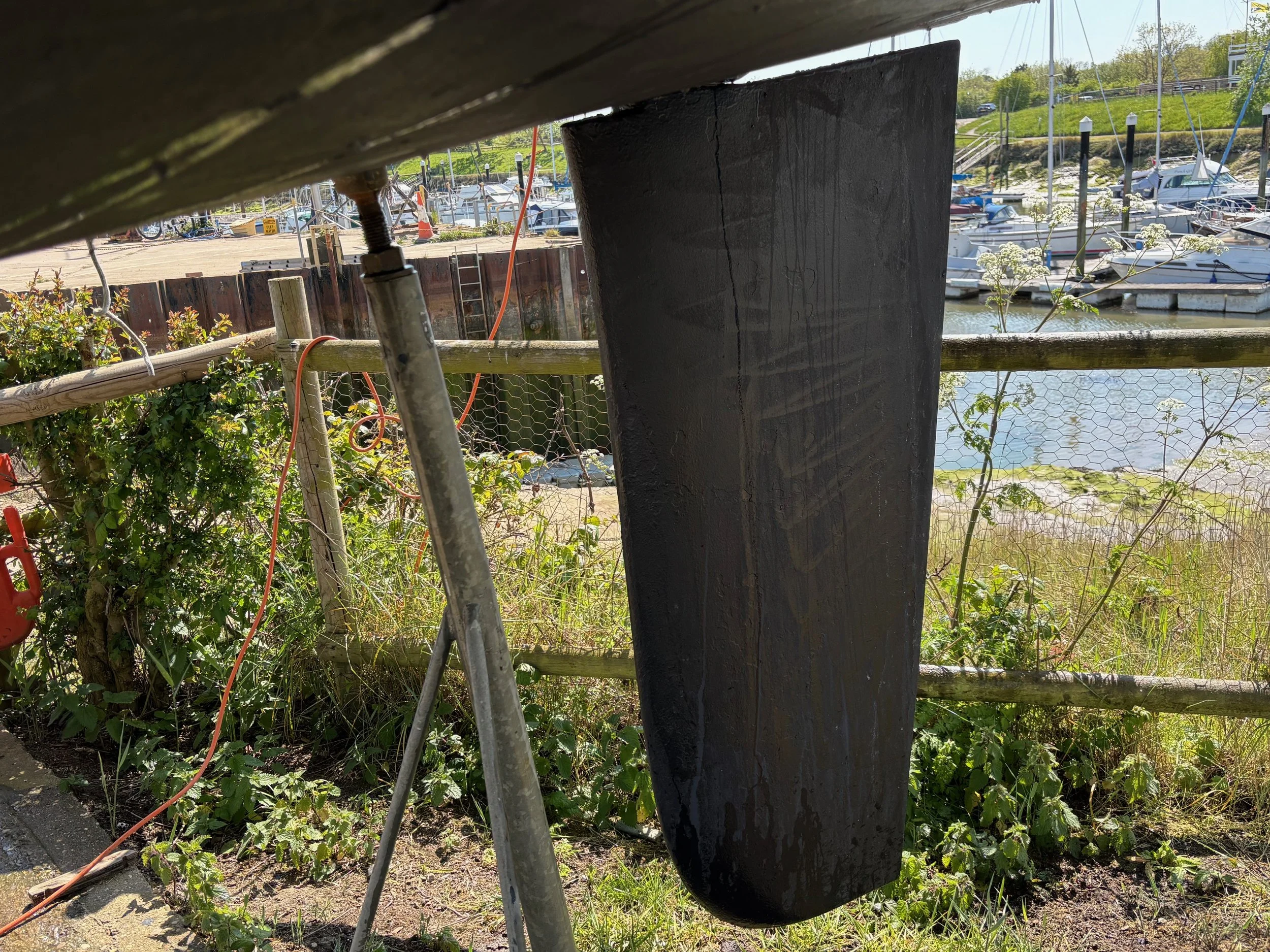

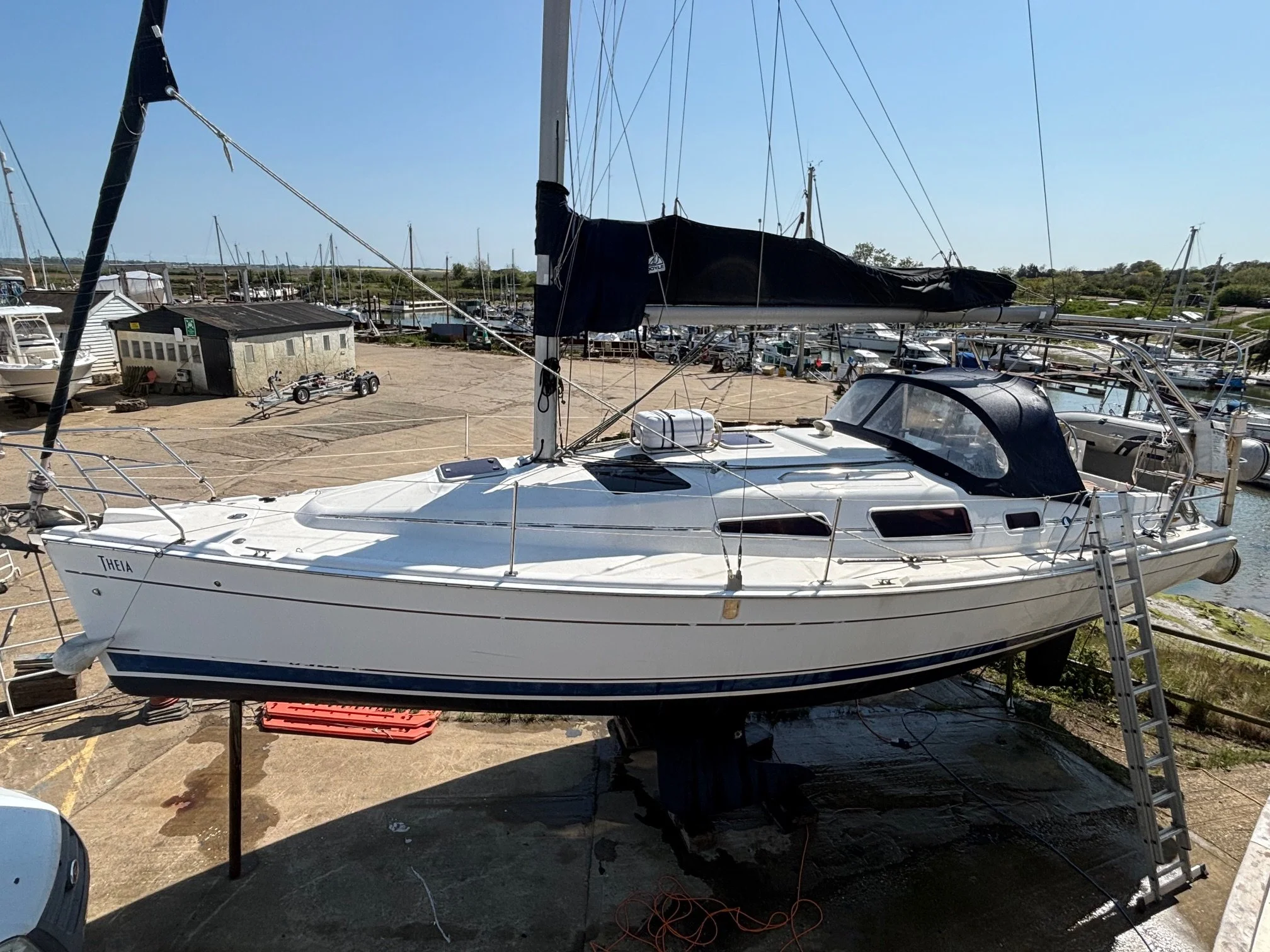

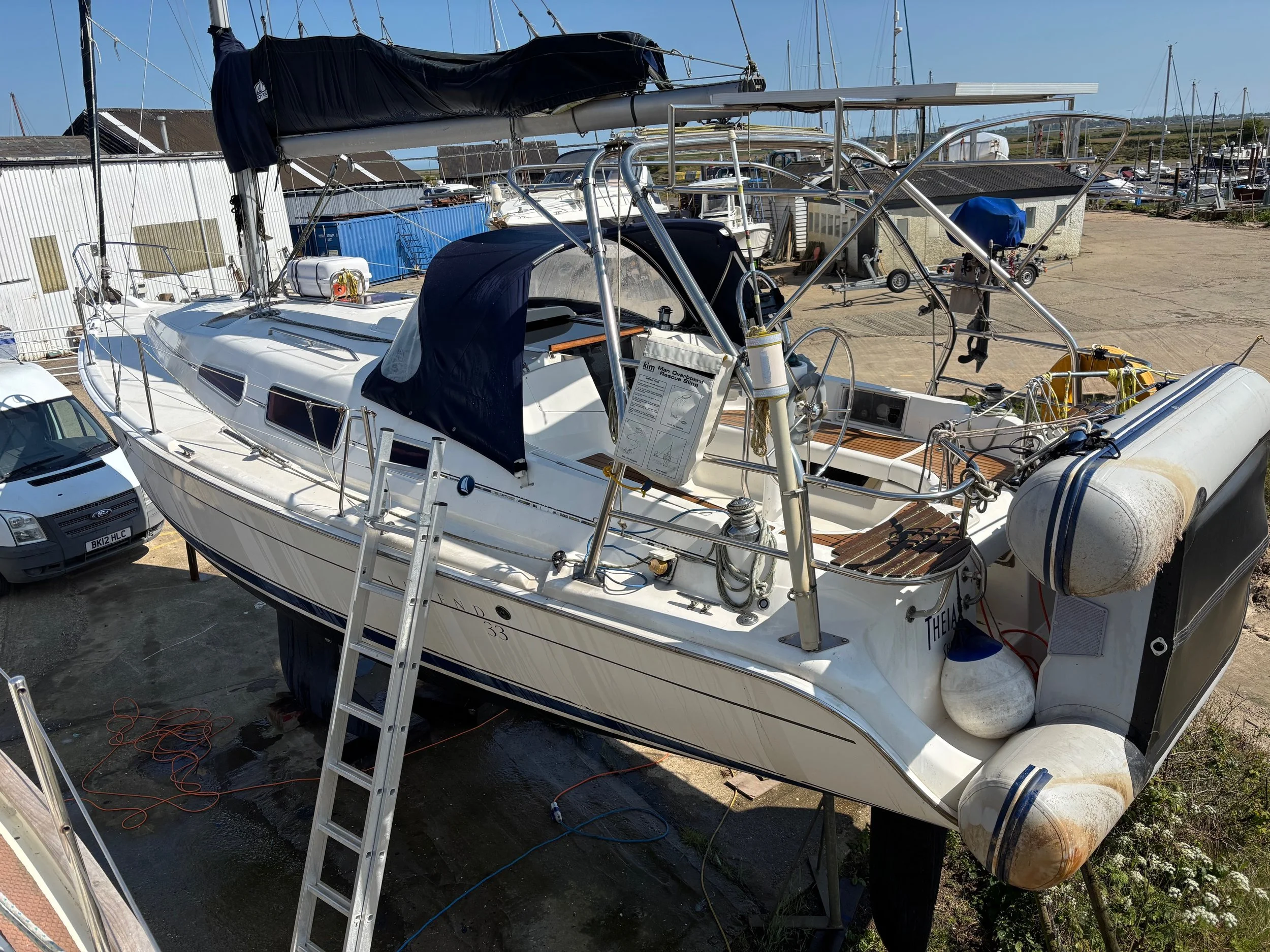

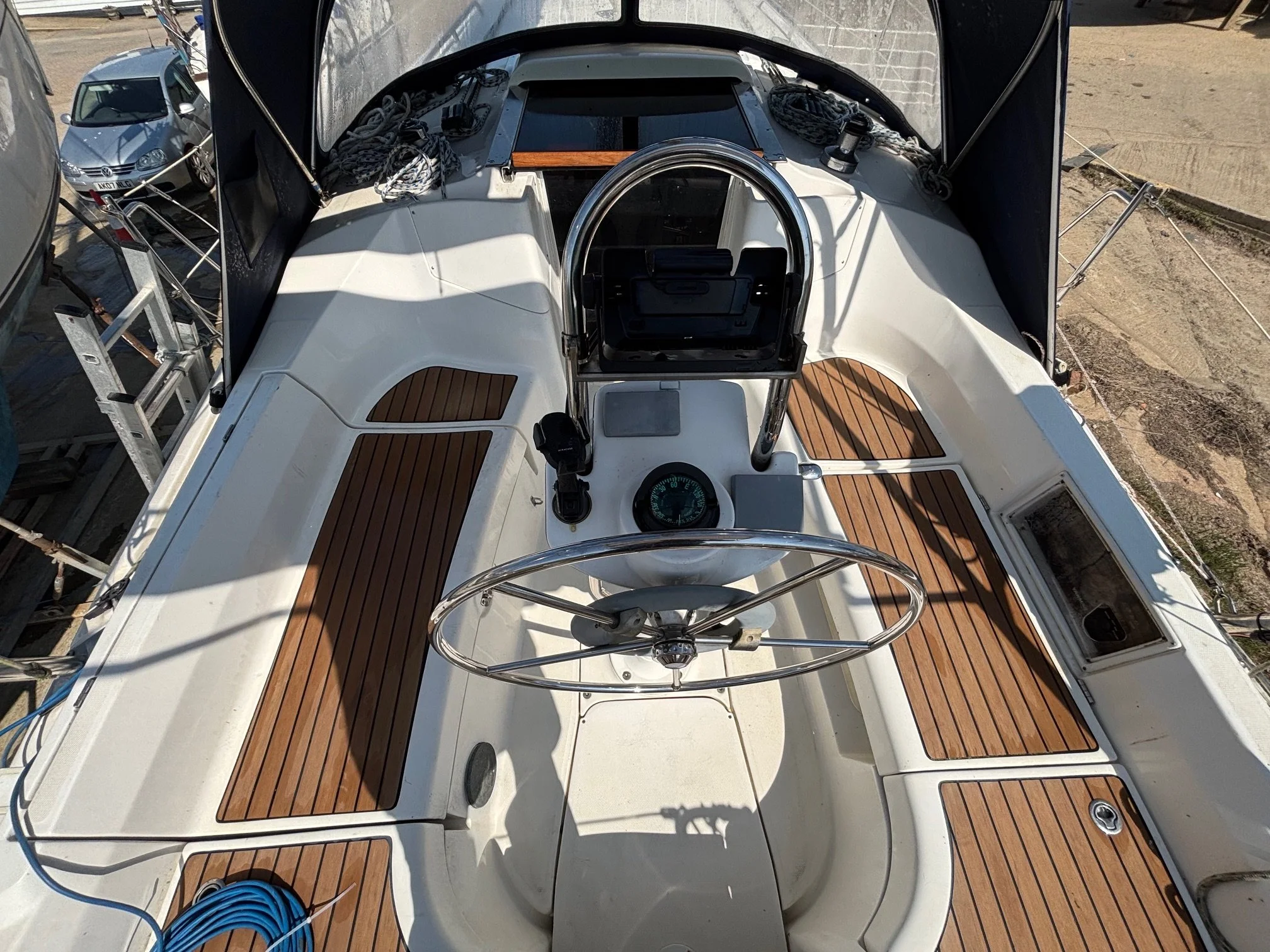

"Theia" has been in current ownership since late 2018. She is the twin keel version of these attractive twin keel family boats, having wheel steering and a well designed 6 berth interior layout. She comes fully equipped and her dinghy & outboard motor are included.
